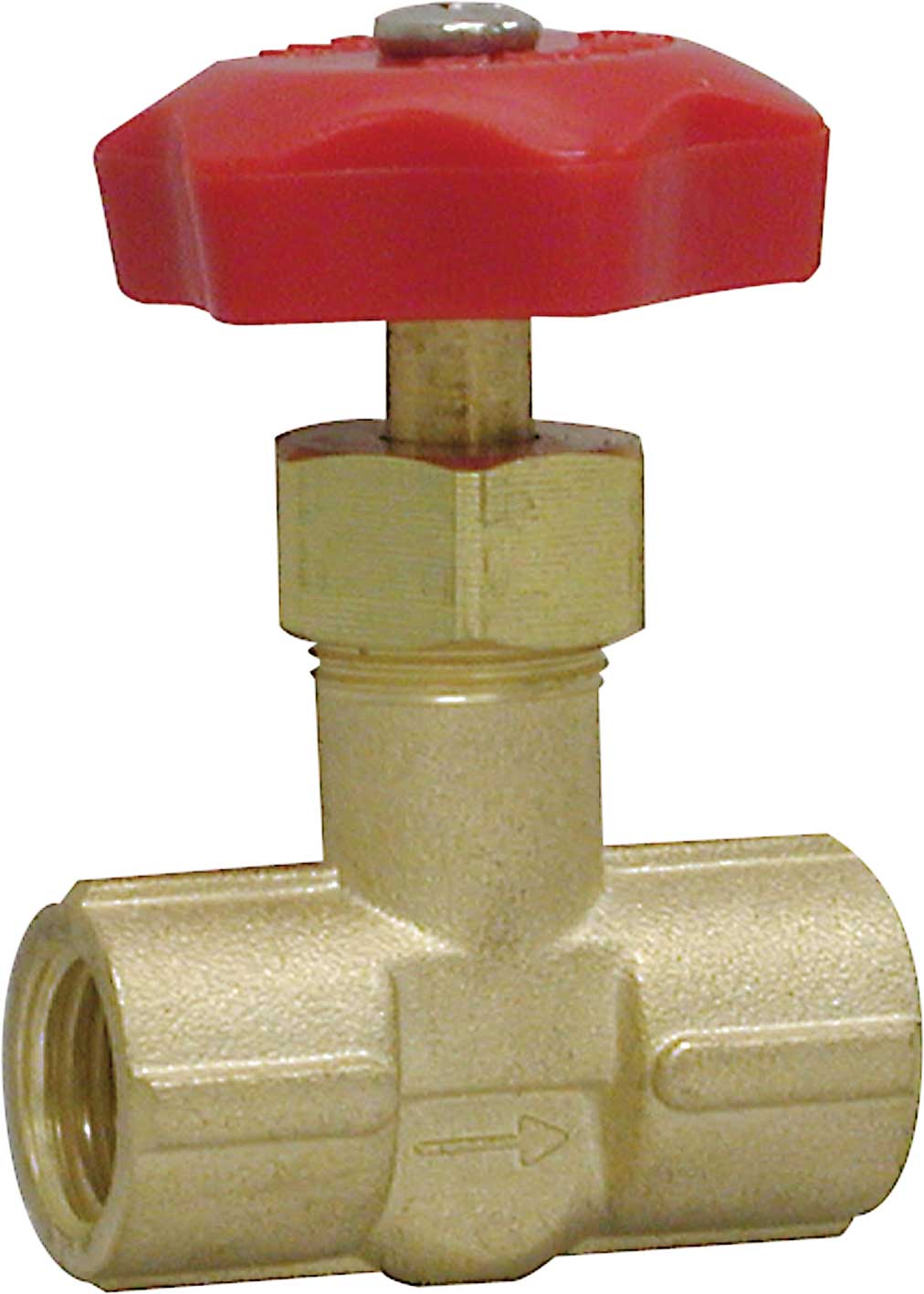

SNV Needle Valve and SNV-LF Lead Free Needle Valve Description & Features: • An isolation valve for pressure gauges and transmitters
• For mild applications, this valve can be used to throttle pulsation. Please see NVA Stainless Steel Needle Valve for more demanding applications
• Brass or lead free brass wetted parts
• ASME B1.20.1 compliant
• CRN registered
• 1 year warranty Applications: • Provides precision flow control for any non-corrosive application up to 400 psi (2,758 kPa) Download SNV specifications and order info Download SNV-LF specifications and order info Lead Free Certificate of Conformance Custom order engineering part number
| Body | #59-1 forged brass | | | | | Handle | ABS plastic, dyed red | | | | | O-ring | Rubber | | | | | Shaft | SNV: #59-1 Brass
SNV-LF: Lead free brass | | | | | Nut | SNV: #59-1 Brass
SNV-LF: Lead free brass | | | | | Process Temperature | -9°F to 212°F (-23°C to 100°C) | | | | | Maximum Operating Pressure | 400 psi (2,758 kPa) | | | | | Connection | 1/4” NPT female |
|
