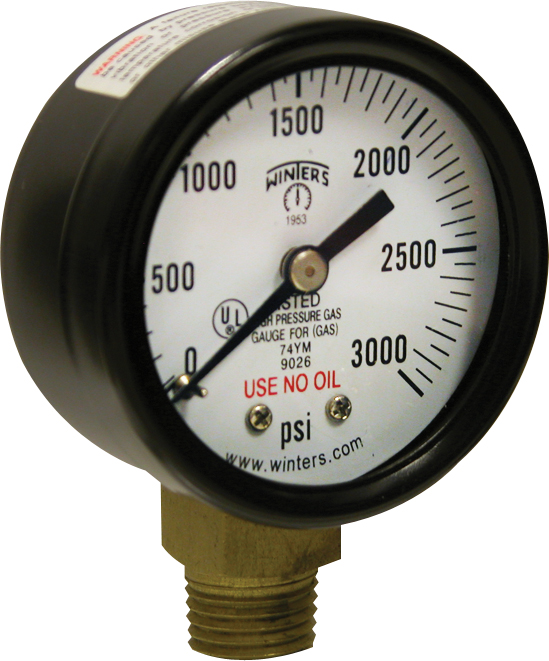

PCG Compressed Gas Pressure Gauge Description & Features: • Economical 2" (50mm) gauge with built-in safety features
• Safety blowout back steel case
• ASME B40.100 compliant
• UL Listed
• CRN registered
• 5 year warranty Applications: •
Beverage dispensing, regulators and tanks. Low pressures are used on
the down stream side of a regulator. High pressures are used for
measuring cylinder gas or tank pressures Download specifications and order info Custom order engineering part number
| Dial | 1.5” (40mm), 2” (50mm) | | | | | Case | Steel with blowout back, painted black | | | | | Lens | Acrylic | | | | | Ring | Steel, painted black | | | | | Socket | Brass | | | | | Connection | 1/8” or 1/4” NPT, bottom or back | | | | | Bourdon Tube | Brass | | | | | Movement | Brass | | | | | Pointer | Aluminum, painted black | | | | | Over-Pressure Limit | 25% of full scale value | | | | | Working Pressure | Maximum 75% of full scale value | | | | | Ambient/Process Temperature | -40°F to 150°F (-40°C to 65°C) | | | | | Accuracy | ±3-2-3% ANSI/ASME Grade B | | | | | Enclosure Rating | IP52 |
|
|
|
