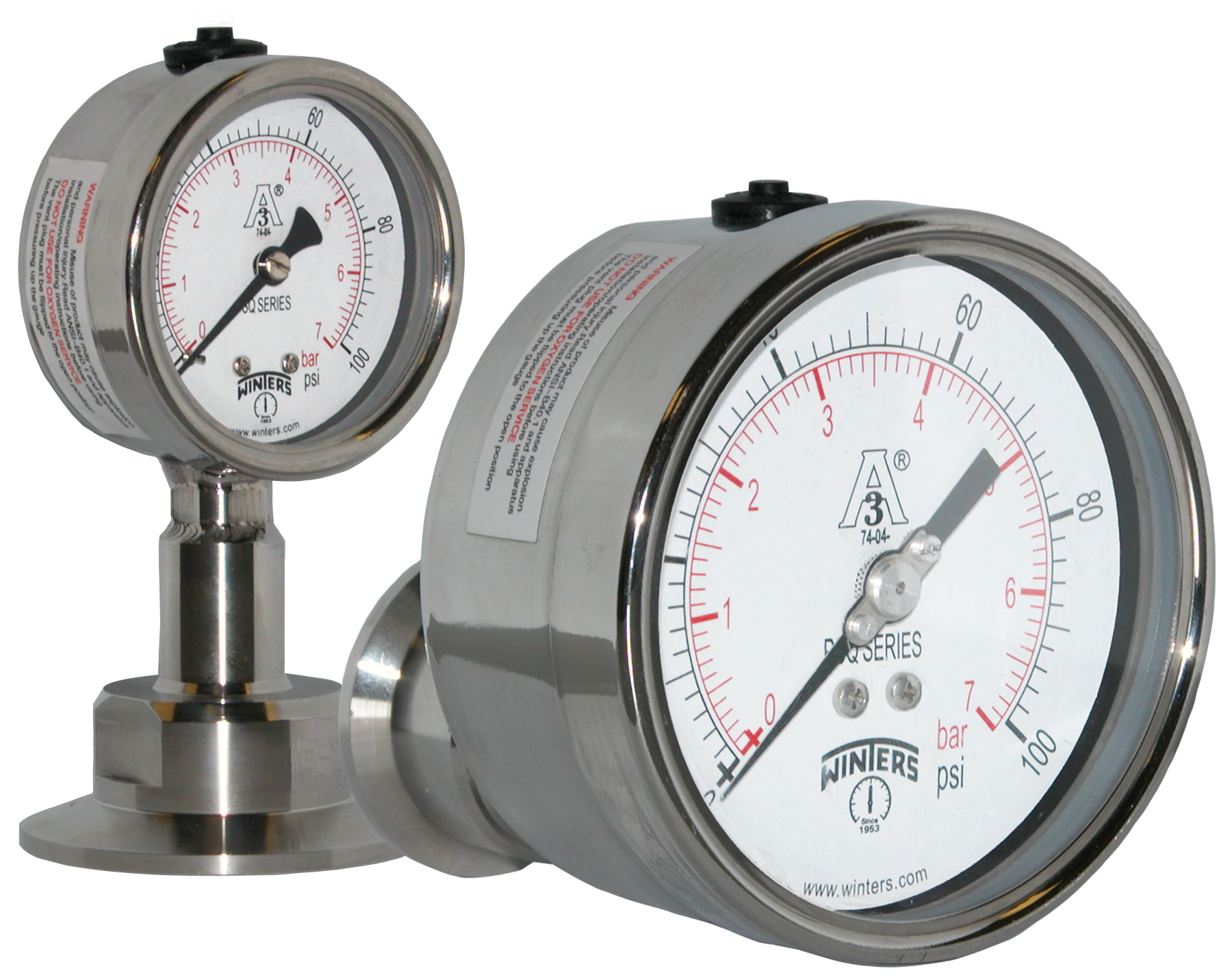

Winters PSQ 3A All-Purpose Quality Sanitary Gauge

Description & Features:

• Quality series for all sanitary gauge systems
• Food grade glycerin filling standard
• High polish finish
• Crack/breakage-resistant polycarbonate lens standard
• Clean-In-Place and steam-in-place design
• ASME B40.100 compliant
• CRN Registered
• 5 year warranty

Applications:

• Built to withstand all sanitary applications where 3A approval is required including food, beverage and dairy installations

Download specifications and order info

Product Comparison



Dial 2.5" (63mm), 4" (100mm) aluminum
Case 304 SS, polished
Bezel 304 SS, polished
Lens Polycarbonate
Connection 1.5" or 2" Tri-Clamp®
Over-range Capability

Over pressure limit: 25% up to 600 psi
15% up to 1000 psi

CIP Temperature Limit 250°F (121°C) continuous
SIP Temperature Limit 266°F (149°C) 1 hour, dry
Bourdon Tube 316 SS
Socket 316 SS
Movement 304 SS
Enclosure Rating IP65/NEMA 4X
System Fill Food grade glycerin standard (Mineral oil, silicone and Neobee-20 optional)
Case Fill Food grade glycerin standard (Dry, mineral oil, silicone and Neobee-20 optional)
Re-zero Feature Adjustable micrometer pointer (4" dial only)
Wetted Parts 316L SS, Ra=8 microinches
Ambient Temperature Glycerin filled: 40°F to 150°F (4°C to 65°C)
Process Temperature 0°F to 250°F (-18°C to 121°C)
Accuracy

2.5" (63mm): ±1.5% of full scale

4" (100mm): ±1.0% of full scale

Agency Compliance 3A standard 74-05
Sort By:
1 2 3 ... 6
Winters PSQ15802
Winters PSQ15802 - 3A 2.5",BTM 1.5" SEAL 0-30 PSI/BAR
Price: $767.30
Sale Price: $567.80

3A  2.5",BTM 1.5" SEAL 0-30 PSI/BAR more info
Winters PSQ15803
Winters PSQ15803 - 3A 2.5", BTM 1.5" SEAL 0-60 PSI/BAR
Price: $767.30
Sale Price: $567.80

3A  2.5", BTM 1.5" SEAL 0-60 PSI/BAR more info
Winters PSQ15804
Winters PSQ15804 - 3A 2.5", 1.5" BTM SEAL 0-100 PSI/BAR
Price: $767.30
Sale Price: $567.80

3A  2.5", 1.5" BTM SEAL 0-100 PSI/BAR more info
Winters PSQ15805
Winters PSQ15805 - 3A 2.5", 1.5" BTM SEAL 0-160 PSI/KPA
Price: $767.30
Sale Price: $567.80

3A  2.5", 1.5" BTM SEAL 0-160 PSI/KPA more info
Winters PSQ15806
Winters PSQ15806 - 3A 2.5", 1.5" BTM SEAL 0-200 PSI/BAR
Price: $767.30
Sale Price: $567.80

3A  2.5", 1.5" BTM SEAL 0-200 PSI/BAR more info
Winters PSQ15807
Winters PSQ15807 - 3A 2.5", 1.5" BTM SEAL 0-300 PSI/BAR
Price: $767.30
Sale Price: $567.80

3A  2.5", 1.5" BTM SEAL 0-300 PSI/BAR more info
Winters PSQ15808
Winters PSQ15808 - 3A 2.5", 1.5" BTM SEAL 0-600 PSI/BAR
Price: $767.30
Sale Price: $567.80

3A  2.5", 1.5" BTM SEAL 0-600 PSI/BAR more info
Winters PSQ15809
Winters PSQ15809 - 3A 2.5", 1.5" BTM SEAL 0-1000 PSI/BAR
Price: $767.30
Sale Price: $567.80

3A  2.5", 1.5" BTM SEAL 0-1000 PSI/BAR more info
Winters PSQ15791
Winters PSQ15791 - 3A 2.5" DIAL 1.5" BTMSEAL, 30/0/100 PSI/BAR
Price: $805.67
Sale Price: $596.20

3A  2.5" DIAL 1.5" BTMSEAL, 30/0/100 PSI/BAR more info
Winters PSQ15793
Winters PSQ15793 - 3A 2.5" DIAL 1.5" BTM SEAL, 30/0/150 PSI/BAR
Price: $805.67
Sale Price: $596.20

3A  2.5" DIAL 1.5" BTM SEAL, 30/0/150 PSI/BAR more info
Winters PSQ15794
Winters PSQ15794 - 3A 2.5" DIAL 1.5" BTM SEAL, 30/0/200 PSI/BAR
Price: $805.67
Sale Price: $596.20

3A  2.5" DIAL 1.5" BTM SEAL, 30/0/200 PSI/BAR more info
Winters PSQ15795
Winters PSQ15795 - 3A 2.5" DIAL 1.5" BTM SEAL, 30/0/300 PSI/BAR
Price: $805.67
Sale Price: $596.20

3A  2.5" DIAL 1.5" BTM SEAL, 30/0/300 PSI/BAR more info
Winters PSQ15798
Winters PSQ15798 - 3A 2.5" DIAL 1.5" BTM SEAL, 30/0/30 PSI/BAR
Price: $805.67
Sale Price: $596.20

3A  2.5" DIAL 1.5" BTM SEAL, 30/0/30 PSI/BAR more info
Winters PSQ15799
Winters PSQ15799 - 3A 2.5" DIAL 1.5" BTMSEAL, 30/0/60 PSI/BAR
Price: $805.67
Sale Price: $596.20

3A  2.5" DIAL 1.5" BTMSEAL, 30/0/60 PSI/BAR more info
Winters PSQ15802B
Winters PSQ15802B - 3A 2.5",BK 1.5" SEAL 0-30 PSI/BAR
Price: $805.67
Sale Price: $596.20

3A  2.5",BK 1.5" SEAL 0-30 PSI/BAR more info
Winters PSQ15803B
Winters PSQ15803B - 3A 2.5", BK 1.5" SEAL 0-60 PSI/BAR
Price: $805.67
Sale Price: $596.20

3A  2.5", BK 1.5" SEAL 0-60 PSI/BAR more info
Winters PSQ15804B
Winters PSQ15804B - 3A 2.5", 1.5" BK SEAL 0-100 PSI/BAR
Price: $805.67
Sale Price: $596.20

3A  2.5", 1.5" BK SEAL 0-100 PSI/BAR more info
Winters PSQ15805B
Winters PSQ15805B - 3A 2.5", 1.5" BK SEAL 0-160 PSI/KPA
Price: $805.67
Sale Price: $596.20

3A  2.5", 1.5" BK SEAL 0-160 PSI/KPA more info
Winters PSQ15806B
Winters PSQ15806B - 3A 2.5", 1.5" BK SEAL 0-200 PSI/BAR
Price: $805.67
Sale Price: $596.20

3A  2.5", 1.5" BK SEAL 0-200 PSI/BAR more info
Winters PSQ15807B
Winters PSQ15807B - 3A 2.5", 1.5" BK SEAL 0-300 PSI/BAR
Price: $805.67
Sale Price: $596.20

3A  2.5", 1.5" BK SEAL 0-300 PSI/BAR more info
