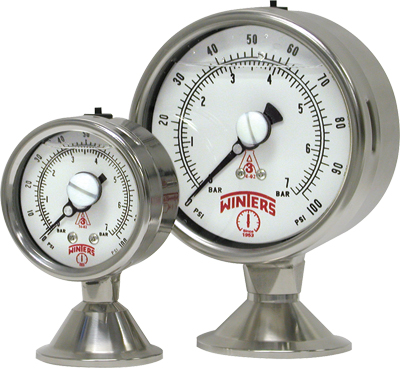

PAG 3A Food, Beverage & Dairy Sanitary Gauge Description & Features: • ±0.75% full scale accuracy
• Food grade glycerin filling standard
• Re-zero feature standard
• Crack/breakage-resistant polycarbonate lens standard
• Clean-In-Place design
• Steam-In-Place design
• Autoclavable
• ASME B40.100 compliant
• CRN registered
• 5 year warranty Applications: • Built to withstand the harshest of sanitary
applications and where 3A approval is required Download specifications and order info Custom order engineering part number
| Dial | 2.5” (63mm), 4” (100mm) aluminum | | | | | Case | 304 SS, polished | | | | | Connection | 1.5" or 2" Tri-Clamp® | | | | | Repeatability | 0.25% of full scale | | | | | Linearity | 0.25% of full scale | | | | | Lens | 3/16" thick polycarbonate | | | | | Over-range Capability | 50% of full scale | | | | | Hysteresis | 0.25% of full scale | | | | | CIP Temperature Limit | 250°F (121°C) continuous | | | | | SIP Temperature Limit | 300°F (149°C) 1 hour, dry | | | | | Bourdon Tube | 316L SS, welded | | | | | Socket | 316L SS, welded | | | | | Storage Temperature | -22°F to 195°F (-30°C to 91°C) | | | | | Temperature Effect | Less than 0.16% per 10°F (5.5°C) change in process or ambient temperature | | | | | Actuating Fill | Food grade glycerin standard (Mineral oil, silicone and Neobee-20 optional) | | | | | Case Fluid | Food grade glycerin standard
(Dry, mineral oil, silicone and Neobee-20 optional) | | | | | Pulsation Dampening | Standard | | | | | Re-zero Feature | Externally adjustable micrometer pointer | | | | | Wetted Parts | 316L SS, Ra = 8 microinches | | | | | Bezel | 304 SS, polished | | | | | Ambient Temperature | 40°F to 140°F (4°C to 60°C) | | | | | Process Temperature | 0°F to 250°F (-18°C to 121°C) | | | | | Accuracy | ±0.75% of full scale |
|
