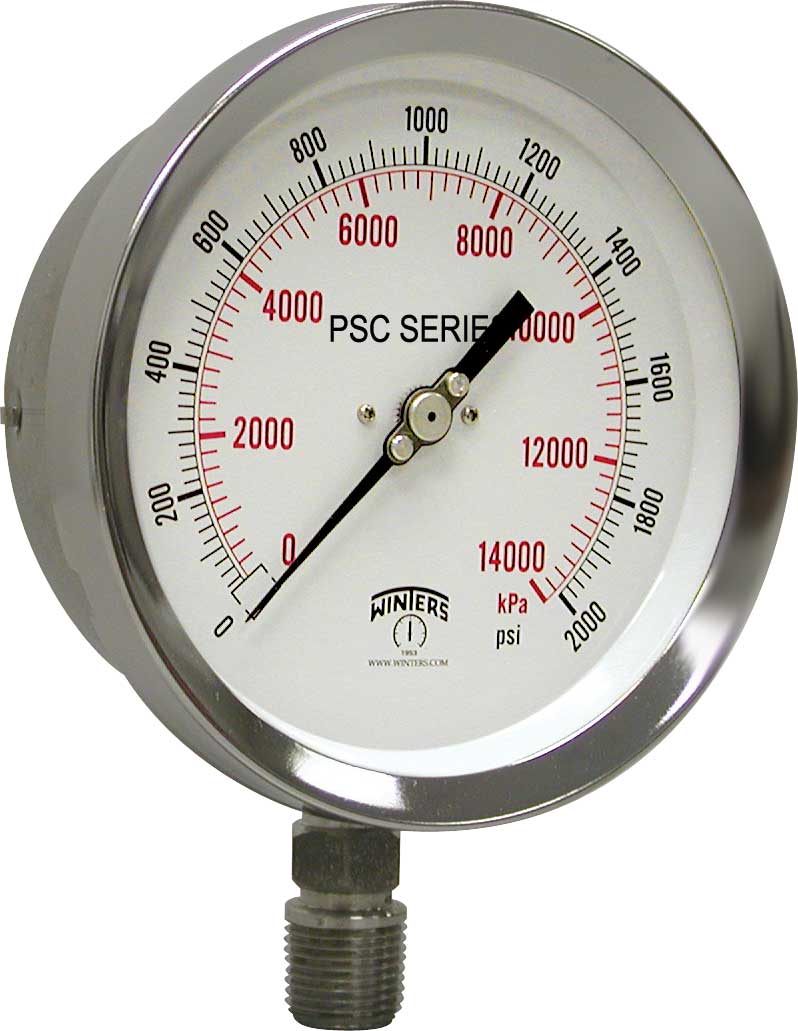

PSC - SAFETY CASE GAUGES

Description & Features:

• Solid front blowout back for the ultimate in gauge safety
• Full rotary movement and micrometer pointer for ease in calibration
• Stainless steel case, socket and internals
• Safety glass lens
• ASME B40.100 compliant
• CRN registered
• 5 year warranty

Applications:

• Used where operator safety is a must

Download specifications and order info

Custom order engineering part number

Dial	4” (100mm), 4.5” (115mm), 6” (150mm), white aluminum dial with black and red markings

Case	304 SS case with blowout back

Lens	4” (100mm), 6” (150mm): Laminated safety glass 4.5” (115mm): Tempered safety glass

Ring	SS bayonet

Socket	316L SS

Connection	1/4” or 1/2” NPT bottom

Bourdon Tube	316L SS

Movement	304 SS

Pointer	Aluminum, anodized black, micrometer adjustable

Over-Pressure Limit	30% for pressure up to 600 psi (4,147 kPa) 15% for pressure over 600 psi (4,147 kPa)

Working Pressure	Maximum 75% of full scale value

Ambient/Process Temperature	-40°F to 150°F (-40°C to 65°C)

Accuracy	4” (100mm), 6” (150mm): ±1% ANSI/ASME Grade 1A 4.5” (115mm): ±0.5% ANSI/ASME Grade 2A

Enclosure Rating	IP65 per UEC 529, UNI 8896

PSC - SAFETY GAUGE
Dial Size	4"		4.5"		6"
Pressure Range - Dual Scale Dial PSI	1/4" Bottom	1/2" Bottom	1/4" Bottom	1/2" Bottom	1/4" Bottom	1/2" Bottom
0/30" VAC/KPA	PSC248	*	PSC281	*	PSC283	*
30"/0/15 PSI/KPA	PSC249	*	PSC282	*	PSC284	*
30"/0/30 PSI/KPA	PSC257	*	PSC358	*	PSC285	*
30"/0/60 PSI/KPA	PSC258	*	PSC359	*	PSC286	*
30"/0/100 PSI/KPA	PSC259	*	PSC362	*	PSC287	*
30"/0/150 PSI/KPA	PSC260	*	PSC363	*	PSC289	*
30"/0/200 PSI/KPA	PSC261	*	PSC364	*	PSC296	*
30"/0/300 PSI/KPA	PSC262	*	PSC365	*	PSC297	*
0/15 PSI/KPA	PSC263	*	PSC366	*	PSC298	*
0/30 PSI/KPA	PSC264	*	PSC367	*	PSC299	*
0/60 PSI/KPA	PSC265	*	PSC368	*	PSC307	*
0/100 PSI/KPA	PSC266	*	PSC369	*	PSC308	*
0/160 PSI/KPA	PSC267	*	PSC370	*	PSC309	*
0/200 PSI/KPA	PSC268	*	PSC371	*	PSC317	*
0/300 PSI/KPA	PSC269	*	PSC372	*	PSC318	*
0/400 PSI/KPA	PSC272	*	PSC373	*	PSC335	*
0/600 PSI/KPA	PSC273	*	PSC374	*	PSC336	*
0/1,000 PSI/KPA	*	PSC274	*	PSC375	*	PSC337
0/1,500 PSI/KPA	*	PSC275	*	PSC376	*	PSC338
0/2,000 PSI/KPA	*	PSC276	*	PSC377	*	PSC339
0/3,000 PSI/KPA	*	PSC277	*	PSC378	*	PSC347
0/5,000 PSI/KPA	*	PSC278	*	PSC379	*	PSC348
0/10,000 PSI/KPA	*	PSC498	*	PSC380	*	PSC502
0/15,000 PSI/KPA	*	PSC499	*	PSC381	*	PSC504
