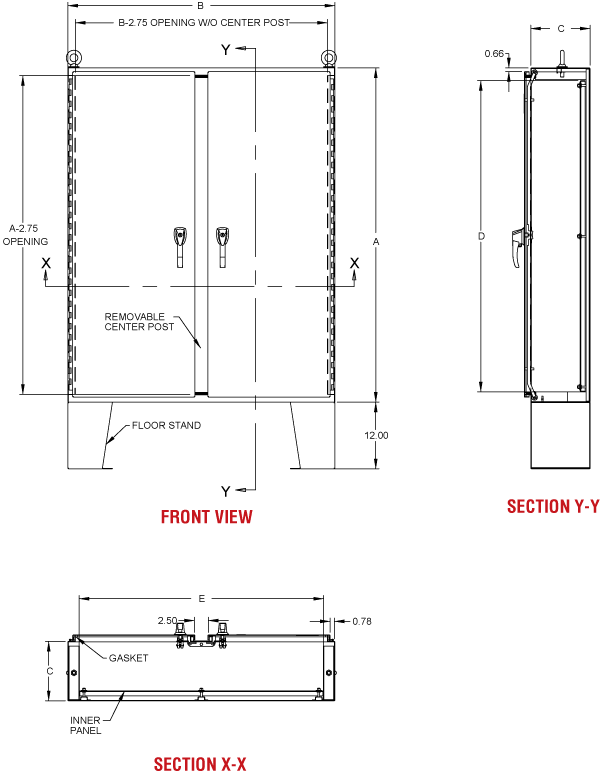

HN4 Series Stainless Steel Two Door Floor Mount - NEMA 4X

Application

• Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
• Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.

Standards

• UL 508 Type 3R, 4X and 12
• CSA Type 3R, 4X and 12
• Complies with:
  • NEMA Type 3R, 4X, 12 and 13
  • IEC 60529, IP66

Construction

• Formed 12 gauge 304 or 316 stainless steel.
• Smooth, continuously welded seams without knockouts, cutouts or holes.
• Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles.
• Doors are supported with heavy gauge continuous hinges.
• New 3-pt padlocking door handle.
• Seamless poured-in place gasket.
• A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
• Center post is removable for easy installation of the inner panel.
• 12” floor stands are welded to the enclosure.

Finish

• Cover and enclosure are natural stainless steel with a smooth brushed finish.
• Removable inner panel is finished in white powder coating.

Accessories

• Air conditioners
• Breather kits
• Door stop kits
• Heaters
• Light kit
• Thermostats
• Window kits
