Eclipse Series 316 Stainless Steel - NEMA 4X

Single Door Enclosures

Application

Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
A wide range of sizes and practical accessories make this product line a complete package.
For high temperature applications, a gasket retainer may be required, please refer to factory.

Standards

UL 508 Type 3R, 4, 4X and 12
CSA Type 3R, 4, 4X and 12
Complies with
- NEMA 3R, 4, 4X, 12 and 13
- IEC 60529, IP 66

Construction

Formed 316 stainless steel.
Continuously welded seams ground smooth.
Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
Formed lip on enclosure to exclude flowing liquids and contaminants.
Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
Doors may be easily removed for modifications and are interchangeable.
Oil resistant gaskets are permanently secured and can easily be replaced in the field if necessary.
Collar studs provided for mounting inner panel.
Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
Bonding stud provided on door and grounding stud installed in enclosure.
Hinges are 304 stainless, 3 point latching handle (where applicable) is zinc diecast with black epoxy finish.
Stainless steel hinge pins and quarter turns.

Finish

Cover and enclosure are natural stainless steel with a smooth brushed finish.

Accessories

Air conditioners
Blowers
Breather kits
DIN rails
DIN rail mounting kit
Door stop kit
Filter fans
Heaters
Handles
Inner panels
Quarter turn inserts and keys
Literature pocket
Mounting foot kit
Padlock Adapter (EPA)
Swing frame
Swing panel
Replacement hinge pins
Replacement quarter turn assemblies
Thermostats
Touch up paint
UL/CSA approved hardware kit

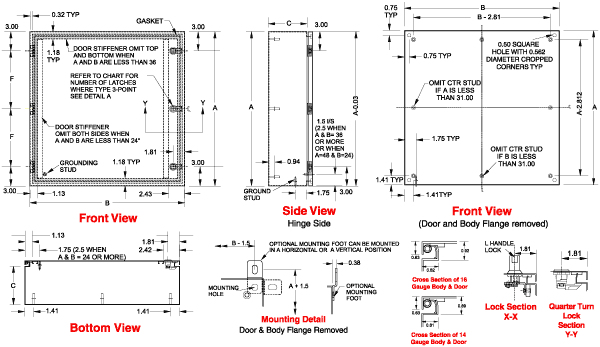

Part No.	Overall			Door/Body Gauge	Latches	Type	Optional Panel	Panel Size		Hinges		Ship Wt.
(Click for DXF)	Dimensions				Qty		Part No.	Panel Size				Lbs.
	A	B	C				(Click for DXF)	D	E		F
EN4SD12126S16	12	12	6	16	1	Qtr Turn	EP1212	10.2	10.2	2	6	12
EN4SD16126S16	16	12	6	16	1	Qtr Turn	EP1612	14.2	10.2	2	10	16
EN4SD16166S16	16	16	6	16	1	Qtr Turn	EP1616	14.2	14.2	2	10	19
EN4SD20166S16	20	16	6	16	1	Qtr Turn	EP2016	18.2	14.2	2	14	22
EN4SD20206S16	20	20	6	16	1	Qtr Turn	EP2020	18.2	18.2	2	14	26
EN4SD16128S16	16	12	8	16	1	Qtr Turn	EP1612	14.2	10.2	2	10	16
EN4SD16168S16	16	16	8	16	1	Qtr Turn	EP1616	14.2	14.2	2	10	21
EN4SD16208S16	16	20	8	16	1	Qtr Turn	EP1620	14.2	18.2	2	10	25
EN4SD20168S16	20	16	8	16	1	Qtr Turn	EP2016	18.2	14.2	2	14	25
EN4SD20208S16	20	20	8	16	1	Qtr Turn	EP2020	18.2	18.2	2	14	28
EN4SD24168S16	24	16	8	16	1	Qtr Turn	EP2416	22.2	14.2	2	18	26
EN4SD24208S16	24	20	8	16	1	Qtr Turn	EP2420	22.2	18.2	2	18	32
EN4SD24248S16	24	24	8	14	2	Qtr Turn	EP2424	22.2	22.2	2	18	40
EN4SD30248S16	30	24	8	14	2	Qtr Turn	EP3024	28.2	22.2	3	12	46
EN4SD30308S16	30	30	8	14	2	Qtr Turn	EP3030	28.2	28.2	3	12	67
EN4SD36248S16	36	24	8	14	2	Qtr Turn	EP3624	34.2	22.2	3	15	55
EN4SD36308S16	36	30	8	14	2	Qtr Turn	EP3630	34.2	28.2	3	15	77
EN4SD161210S16	16	12	10	16	1	Qtr Turn	EP1612	14.2	10.2	2	10	18
EN4SD161610S16	16	16	10	16	1	Qtr Turn	EP1616	14.2	14.2	2	10	23
EN4SD162010S16	16	20	10	16	1	Qtr Turn	EP1620	14.2	18.2	2	10	28
EN4SD201610S16	20	16	10	16	1	Qtr Turn	EP2016	18.2	14.2	2	14	28
EN4SD202010S16	20	20	10	16	1	Qtr Turn	EP2020	18.2	18.2	2	14	31
EN4SD202410S16	20	24	10	16	1	Qtr Turn	EP2024	18.2	22.2	2	14	38
EN4SD241610S16	24	16	10	16	1	Qtr Turn	EP2416	22.2	14.2	2	18	30
EN4SD242010S16	24	20	10	16	1	Qtr Turn	EP2420	22.2	18.2	2	18	38
EN4SD242410S16	24	24	10	14	2	Qtr Turn	EP2424	22.2	22.2	2	18	45
EN4SD243010S16	24	30	10	14	2	Qtr Turn	EP2430	22.2	28.2	2	18	53
EN4SD302010S16	30	20	10	14	2	Qtr Turn	EP3020	28.2	18.2	3	12	47
EN4SD302410S16	30	24	10	14	2	Qtr Turn	EP3024	28.2	22.2	3	12	53
EN4SD303010S16	30	30	10	14	2	Qtr Turn	EP3030	28.2	28.2	3	12	75
EN4SD362410S16	36	24	10	14	2	Qtr Turn	EP3624	34.2	22.2	3	15	62
EN4SD363010S16	36	30	10	14	2	Qtr Turn	EP3630	34.2	28.2	3	15	83
EN4SD482410S16	48	24	10	14	1	3-point	EP4824	46.2	26.2	4	14	95
EN4SD202012S16	20	20	12	16	1	Qtr Turn	EP2020	18.2	18.2	2	14	34
EN4SD242412S16	24	24	12	14	2	Qtr Turn	EP2424	22.2	22.2	2	18	47
EN4SD302412S16	30	24	12	14	2	Qtr Turn	EP3024	28.2	22.2	3	12	60
EN4SD362412S16	36	24	12	14	2	Qtr Turn	EP3624	34.2	22.2	3	15	62
EN4SD363012S16	36	30	12	14	2	Qtr Turn	EP3630	34.2	28.2	3	15	99
EN4SD363612S16	36	36	12	14	2	Qtr Turn	EP3636	34.2	34.2	3	15	104
EN4SD483616S16	48	36	16	14	1	3-point	EP4836	46.2	34.2	4	14	135
