Eclipse Series 304 Stainless Steel - NEMA 4X

Single Door Enclosures

Application

Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
A wide range of sizes and practical accessories make this product line a complete package.
For high temperature applications, a gasket retainer may be required, please refer to factory.

Standards

UL 508 Type 3R, 4, 4X and 12
CSA Type 3R, 4, 4X and 12
Complies with
- NEMA 3R, 4, 4X, 12 and 13
- IEC 60529, IP 66

Construction

Formed 304 stainless steel.
Continuously welded seams ground smooth.
Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
Formed lip on enclosure to exclude flowing liquids and contaminants.
Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
Doors may be easily removed for modifications and are interchangeable.
Oil resistant gaskets are permanently secured and can easily be replaced in the field if necessary.
Collar studs provided for mounting inner panel.
Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
Bonding stud provided on door and grounding stud installed in enclosure.
Hinges are 304 stainless, 3 point latching handle (where applicable) is zinc diecast with black epoxy finish.
Stainless steel hinge pins and quarter turns.

Finish

Cover and enclosure are natural stainless steel with a smooth brushed finish.

Accessories

Air conditioners
Blowers
Breather kits
DIN rails
DIN rail mounting kit
Door stop kit
Filter fans
Heaters
Handles
Inner panels
Quarter turn inserts and keys
Literature pocket
Mounting foot kit
Padlock Adapter (EPA)
Swing frame
Swing panel
Replacement hinge pins
Replacement quarter turn assemblies
Thermostats
Touch up paint
UL/CSA approved hardware kit

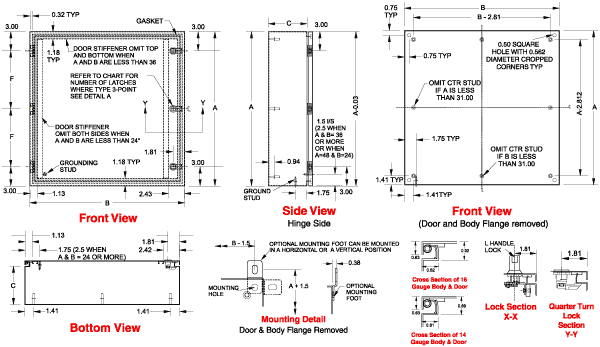

Part No.	Overall			Door/Body Gauge	Latches	Type	Optional Panel	Panel Size		Hinges		Ship Wt.
(Click for DXF)	Dimensions				Qty		Part No.	Panel Size				Lbs.
	A	B	C				(Click for DXF)	D	E		F
EN4SD12126SS	12	12	6	16	1	Qtr Turn	EP1212	10.2	10.2	2	6	12
EN4SD16126SS	16	12	6	16	1	Qtr Turn	EP1612	14.2	10.2	2	10	16
EN4SD16166SS	16	16	6	16	1	Qtr Turn	EP1616	14.2	14.2	2	10	19
EN4SD16206SS	16	20	6	16	1	Qtr Turn	EP1620	14.2	18.2	2	10	22
EN4SD20166SS	20	16	6	16	1	Qtr Turn	EP2016	18.2	14.2	2	14	22
EN4SD20206SS	20	20	6	16	1	Qtr Turn	EP2020	18.2	18.2	2	14	26
EN4SD24206SS	24	20	6	16	1	Qtr Turn	EP2420	22.2	18.2	2	18	30
EN4SD16128SS	16	12	8	16	1	Qtr Turn	EP1612	14.2	10.2	2	10	16
EN4SD16168SS	16	16	8	16	1	Qtr Turn	EP1616	14.2	14.2	2	10	21
EN4SD16208SS	16	20	8	16	1	Qtr Turn	EP1620	14.2	18.2	2	10	25
EN4SD20168SS	20	16	8	16	1	Qtr Turn	EP2016	18.2	14.2	2	14	25
EN4SD20208SS	20	20	8	16	1	Qtr Turn	EP2020	18.2	18.2	2	14	28
EN4SD20248SS	20	24	8	16	1	Qtr Turn	EP2024	18.2	22.2	2	14	32
EN4SD24168SS	24	16	8	16	1	Qtr Turn	EP2416	22.2	14.2	2	18	26
EN4SD24208SS	24	20	8	16	1	Qtr Turn	EP2420	22.2	18.2	2	18	32
EN4SD24248SS	24	24	8	14	2	Qtr Turn	EP2424	22.2	22.2	2	18	40
EN4SD24308SS	24	30	8	14	2	Qtr Turn	EP2430	22.2	28.2	2	18	48
EN4SD30208SS	30	20	8	14	2	Qtr Turn	EP3020	28.2	18.2	3	12	42
EN4SD30248SS	30	24	8	14	2	Qtr Turn	EP3024	28.2	22.2	3	12	46
EN4SD30308SS	30	30	8	14	2	Qtr Turn	EP3030	28.2	28.2	3	12	67
EN4SD36248SS	36	24	8	14	2	Qtr Turn	EP3624	34.2	22.2	3	15	55
EN4SD36308SS	36	30	8	14	2	Qtr Turn	EP3630	34.2	28.2	3	15	77
EN4SD42368SS	42	36	8	14	1	3-point	EP4236	40.2	34.2	4	12	106
EN4SD48368SS	48	36	8	14	1	3-point	EP4836	46.2	34.2	4	14	124
EN4SD161210SS	16	12	10	16	1	Qtr Turn	EP1612	14.2	10.2	2	10	18
EN4SD161610SS	16	16	10	16	1	Qtr Turn	EP1616	14.2	14.2	2	10	23
EN4SD162010SS	16	20	10	16	1	Qtr Turn	EP1620	14.2	18.2	2	10	28
EN4SD201610SS	20	16	10	16	1	Qtr Turn	EP2016	18.2	14.2	2	14	28
EN4SD202010SS	20	20	10	16	1	Qtr Turn	EP2020	18.2	18.2	2	14	31
EN4SD202410SS	20	24	10	16	1	Qtr Turn	EP2024	18.2	22.2	2	14	38
EN4SD241610SS	24	16	10	16	1	Qtr Turn	EP2416	22.2	14.2	2	18	30
EN4SD242010SS	24	20	10	16	1	Qtr Turn	EP2420	22.2	18.2	2	18	38
EN4SD242410SS	24	24	10	14	2	Qtr Turn	EP2424	22.2	22.2	2	18	45
EN4SD243010SS	24	30	10	14	2	Qtr Turn	EP2430	22.2	28.2	2	18	53
EN4SD302010SS	30	20	10	14	2	Qtr Turn	EP3020	28.2	18.2	3	12	47
EN4SD302410SS	30	24	10	14	2	Qtr Turn	EP3024	28.2	22.2	3	12	53
EN4SD303010SS	30	30	10	14	2	Qtr Turn	EP3030	28.2	28.2	3	12	75
EN4SD362410SS	36	24	10	14	2	Qtr Turn	EP3624	34.2	22.2	3	15	62
EN4SD363010SS	36	30	10	14	2	Qtr Turn	EP3630	34.2	28.2	3	15	83
EN4SD423010SS	42	30	10	14	1	3-point	EP4230	40.2	28.2	4	12	110
EN4SD482410SS	48	24	10	14	1	3-point	EP4824	46.2	26.2	4	14	95
EN4SD202012SS	20	20	12	16	1	Qtr Turn	EP2020	18.2	18.2	2	14	34
EN4SD242412SS	24	24	12	14	2	Qtr Turn	EP2424	22.2	22.2	2	18	47
EN4SD302412SS	30	24	12	14	2	Qtr Turn	EP3024	28.2	22.2	3	12	57
EN4SD362412SS	36	24	12	14	2	Qtr Turn	EP3624	34.2	22.2	3	15	62
EN4SD363012SS	36	30	12	14	2	Qtr Turn	EP3630	34.2	28.2	3	15	95
EN4SD363612SS	36	36	12	14	2	Qtr Turn	EP3636	34.2	34.2	3	15	104
EN4SD423612SS	42	36	12	14	1	3-point	EP4236	40.2	34.2	4	12	121
EN4SD483612SS	48	36	12	14	1	3-point	EP4836	46.2	34.2	4	14	148
EN4SD603612SS	60	36	12	14	1	3-point	EP6036	58.2	34.2	4	18	162
EN4SD302416SS	30	24	16	14	2	Qtr Turn	EP3024	28.2	22.2	3	12	60
EN4SD363016SS	36	30	16	14	2	Qtr Turn	EP3630	34.2	28.2	3	15	89
EN4SD483616SS	48	36	16	14	1	3-point	EP4836	46.2	34.2	4	14	135
