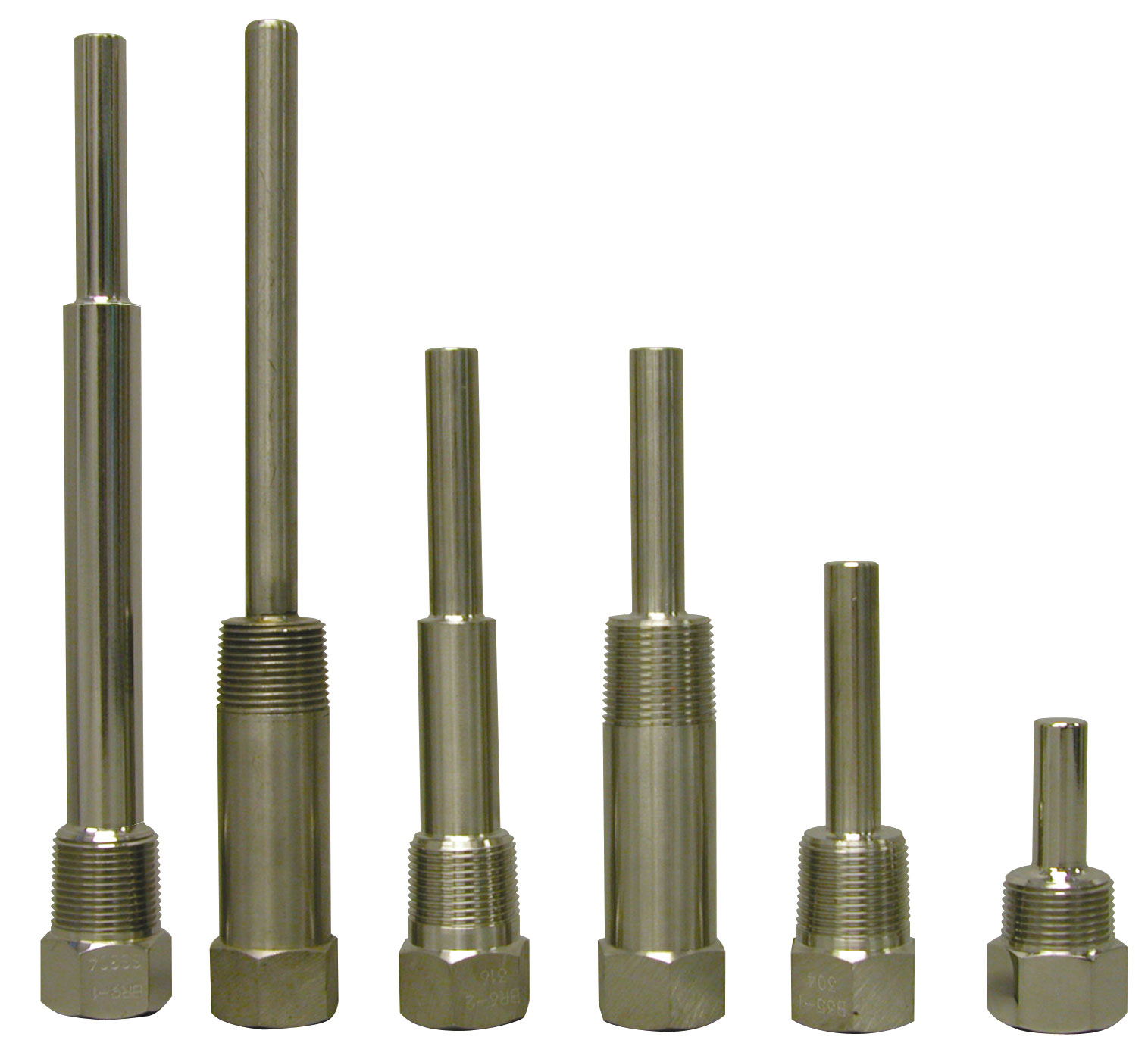

TBR Bi-Metal Threaded Thermowell Description & Features: • Available in a wide range of materials for use on most applications
•
Standard “stepped construction” offering is complemented by an array of
custom thermowells including: straight, tapered, sanitary and flanged
configurations
• CRN registered
• 1 year warranty Applications: •
Allows for the creation of a “sealed system”, whereby the thermometer
can be removed from the application without the need for shutting down
or draining the system
• To protect the thermometer from possible exposure to the process media
Download specifications and order info Custom order engineering part number
| Thermometer Connection | 1/2” NPT female connection standard
Other thread sizes are available upon request | | | | Process
Connection | 1/2”, 3/4” or 1” NPT connection standard
Other thread sizes are available upon request | | | | | Bore | 0.260” (6.5mm) bore standard | | | | | Construction | Stepped construction standard
Tapered construction available upon request | | | | | Material | Brass, AISI 304 SS, AISI 316 SS standard
Other materials available upon request |
|
