Winters

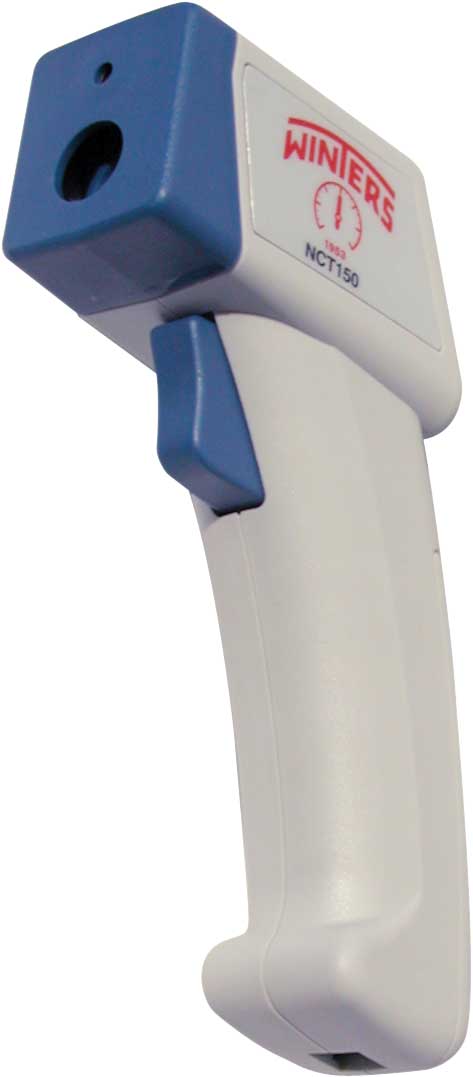

TNC Non-Contact Infrared Thermometer Description & Features: • A portable "point and shoot" infrared thermometer that measures remote surface temperatures

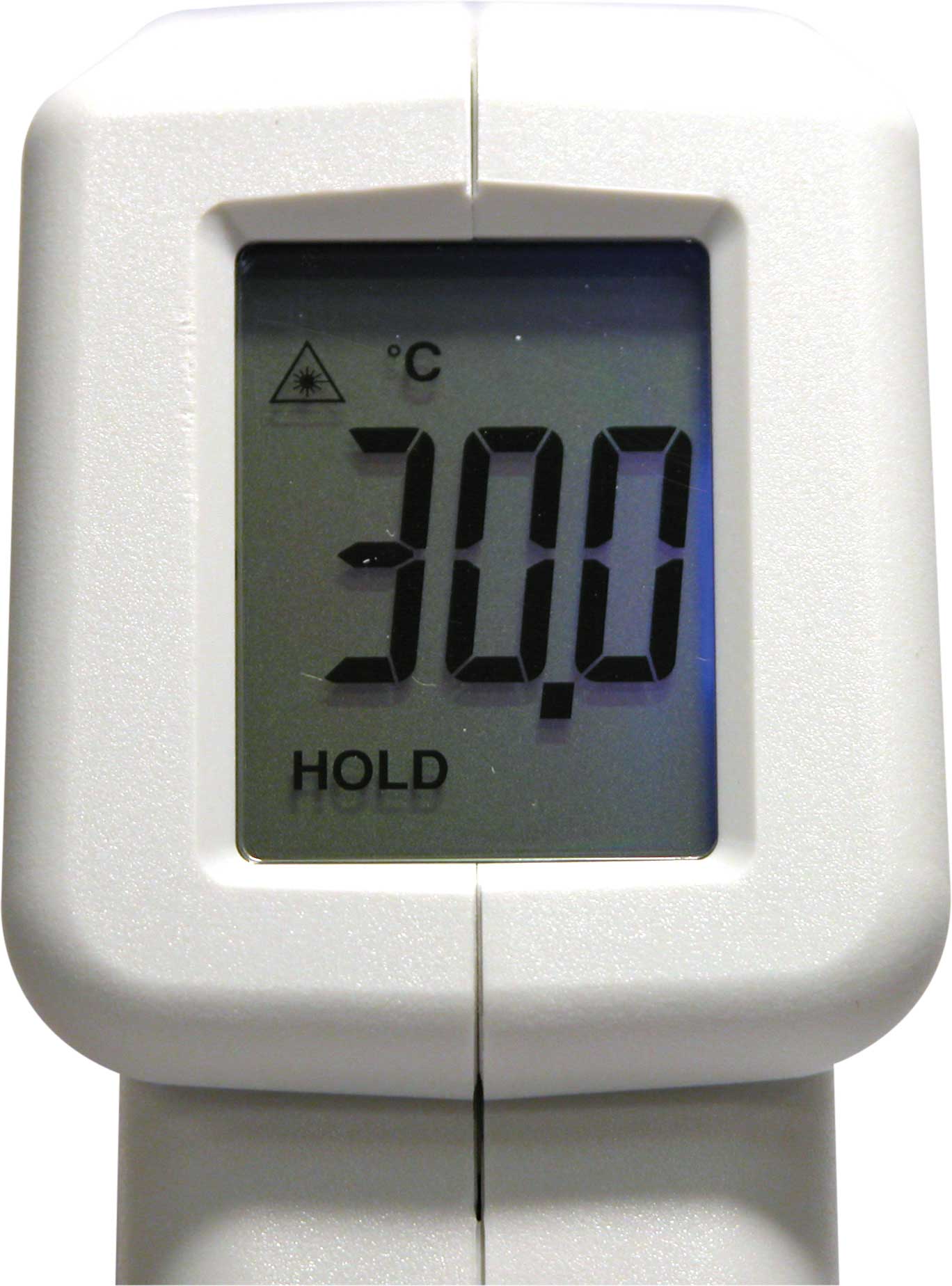

• Digital readout (°F or °C)
• Single hand operated
• Uses less than 1 milliwatt of power
• Auto power off feature to conserve battery
• 9 volt battery powered
• Fast response time (0.25 seconds)
• ASME B40.200 compliant
• 5 year warranty Applications:  •
To measure remote surface temperatures on bearings, electrical panels,
assembly line machines, pumps and concrete construction Download specifications and order info
| Housing | ABS | | | | | Dimensions | 5.8” (h) x 4.1” (w) x 1.68” (d) (148mm x 105mm x 42mm) | | | | | Temp. Range | -22°F to 1022°F (-30°C to 550°C) | | | | | Accuracy | ±2% | | | | | Response Time | 0.25 seconds | | | | | Field of View | 10:1 with laser mark | | | | | Sensor Thermopile | 6-14µm | | | | | Fixed Emissivity (E) | 0.95 | | | | | Laser Classification | Class 2 | | | | | Auto Power Off | 10 seconds | | | | | Battery | 9 Volt |
|
