Winters

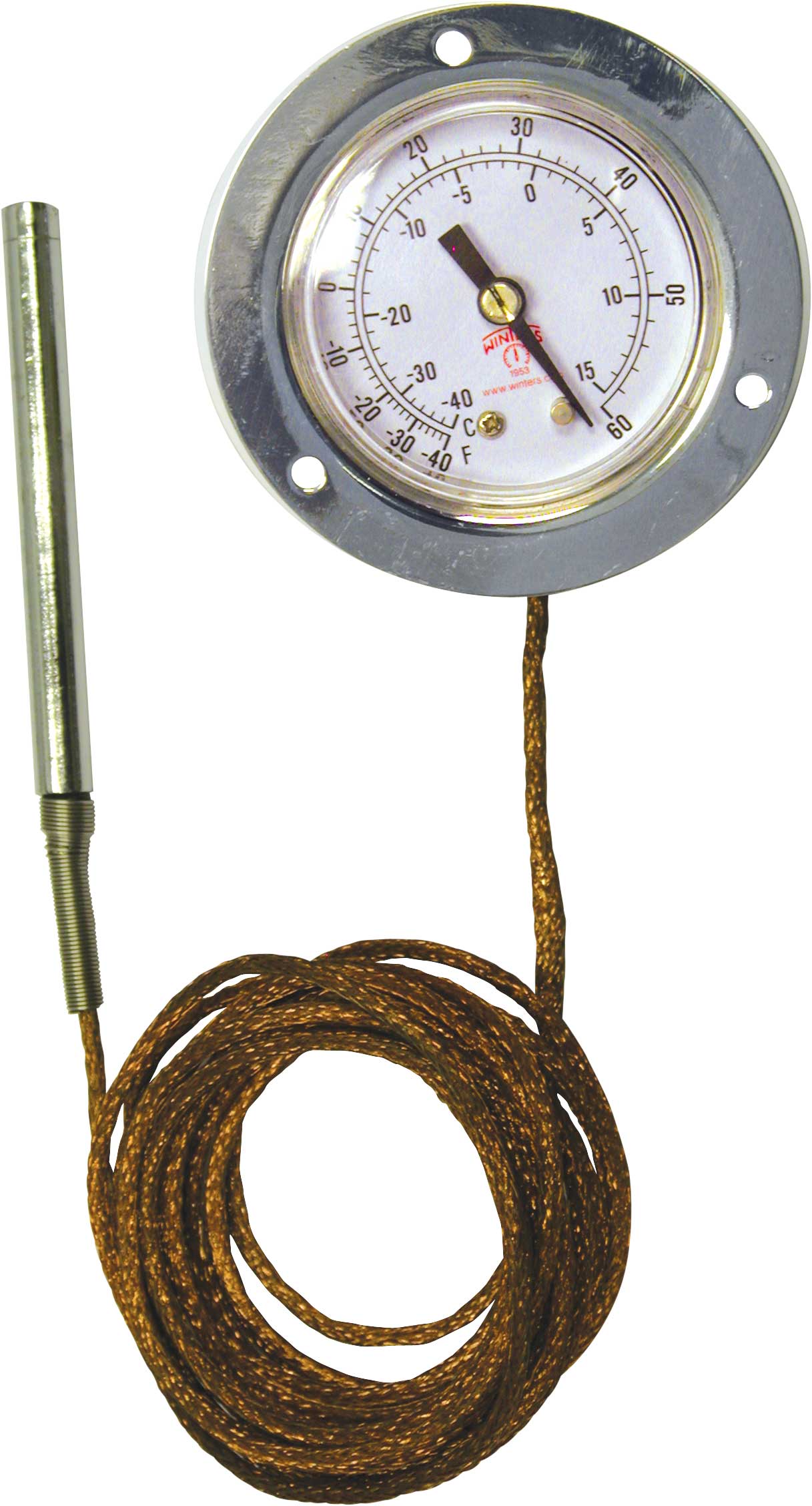

THR HVAC Remote Reading Thermometer Description & Features: • An economical vapour thermometer for remote reading applications
• Stainless steel or black steel case
• Vapour actuated
• Panel mounted (Front Flange or U-Clamp)
• Dual scale (°F & °C)
• 9 feet capillary length
• ASME B40.200 compliant
• 5 year warranty
Applications:
• Freezers, walk-in refrigeration units, food storage cabinets, heating and ventilation. Widely specified in the HVAC, commercial and mechanical industry segments Download specifications and order info
| Dial | Aluminum, painted white with black markings | | | | | Case | 2” (50mm): SS front flange, U-Clamp case
2.5” (63mm): SS front flange, SS or steel painted black U-Clamp case | | | | | Lens | Plexiglass | | | | | Bourdon Tube | Phosphor bronze | | | | | Movement | Brass | | | | | Pointer | Aluminum, painted black | | | | | Welding | Silver alloy | | | | | Capillary | 9 feet (3m) nickel plated brass
| | | | | Protective Spring | SS | | | | | Bulb | Nickel plated brass | | | | | Operating Temperature | Recommended maximum 75% of full scale value | | | | | Accuracy | ±2.5% of full scale | | | | | Enclosure Rating | IP52 |
|
