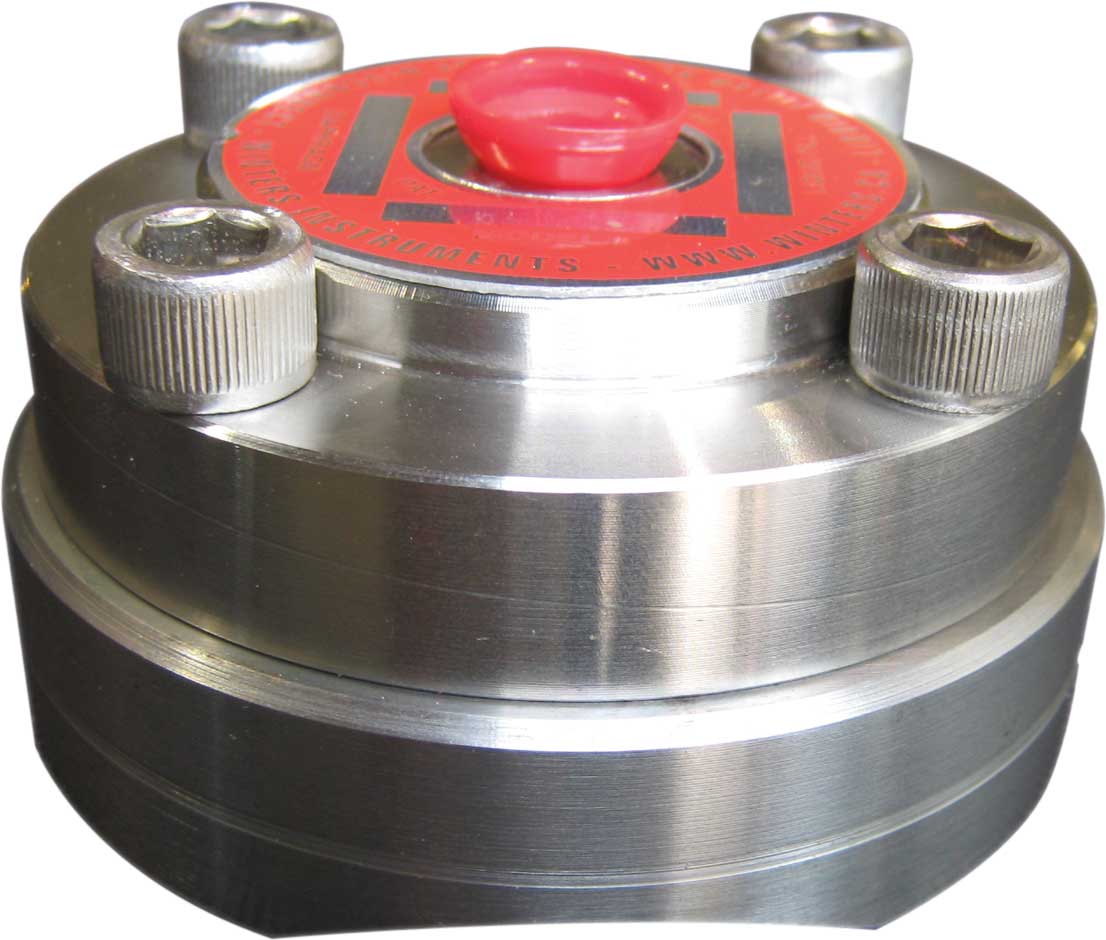

Winters D90 Saddle Weld Seal Description & Features: • Finished with a cleanout design
• Various pipe sizes (1” to 4”) and housing materials available
• 1 year warranty Applications: • Used in industrial applications such as oil refineries, pulp and paper mills and chemical plants Download specifications and order info
| Housing | 316 SS standard.
Steel, nickel, 304 SS, Carpenter® 20, Hastelloy® B available upon request | | | | Diaphragm
| 316 SS, Monel®, Hastelloy® C, Viton®.
Nickel, Teflon®, tantalum, 304 SS, Carpenter® 20, Hastelloy® B available upon request
| | | | | Construction | Two piece construction | | | | | Connection | 1/4”, 1/2” NPT female gauge connections standard (Other NPTF gauges connections available).
1” (25mm), 1.5” (40mm), 2” (50mm), 3” (75mm), 4” (100mm) pipe size standard | | | | Maximum Temperature Limit
| 450°F (232°C)
Viton®: 350°F (176°C)
(Higher temperature limits available) | | | | Other
| Cleanout type for easy cleaning and calibrating |
|
|
|
