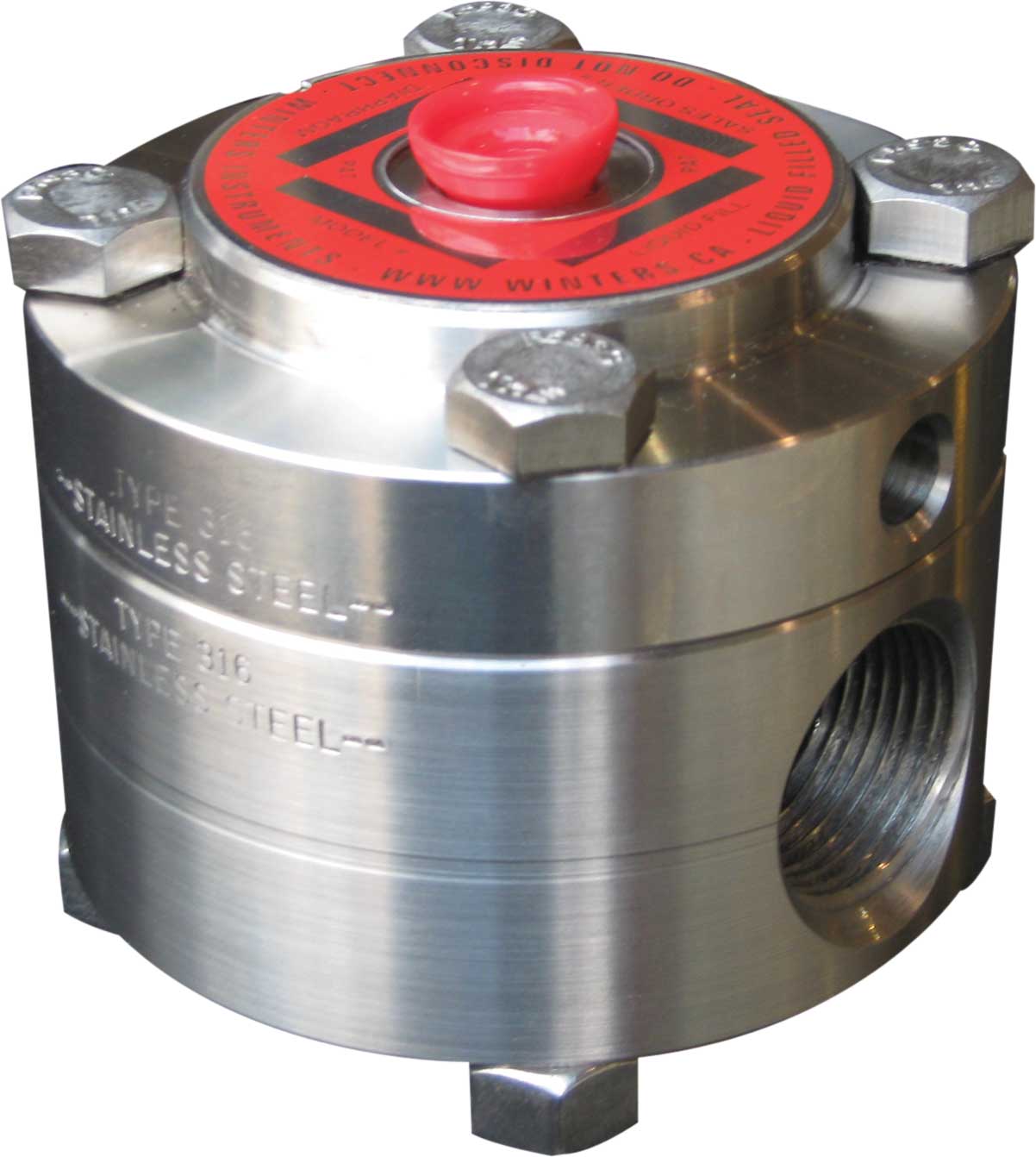

Winters D85 In Line Flow Thru Seal

Description & Features:

• Two piece construction
• Clean-out design allows process media to flow through the seal
• Reduces potential for process media blockages inside diaphragm housing
• 1 year warranty

Applications:

• Where the process fluid is corrosive or viscous and would clog instrument internals/solidify within the pressure gauge, switch or transmitter

Download specifications and order info

Housing316 SS
ConstructionTwo piece construction
Connection

Instrument: 1/4”, 1/2” NPT
Process: 1/4”, 1/2”, 3/4”, 1” NPT or socket weld

Process Temperature-22°F to 302°F (-30°C to 150°C). Other ranges are available upon request
Other
Other materials such as carbon steel are available upon request
Sort By:
1
Winters D852538
Winters D852538 - 1/4" WELDED CONN., 1/4" INSTR CONN., 316 SS WELDED DIAPHRAGM
Price: $1,912.02
Sale Price: $1,414.89

1/4" WELDED CONN., 1/4" INSTR CONN., 316 SS WELDED DIAPHRAGM more info
Winters D852539
Winters D852539 - 1/4" WELDED CONN., 1/2" INSTR CONN., 316 SS WELDED DIAPHRAGM
Price: $1,912.02
Sale Price: $1,414.89

1/4" WELDED CONN., 1/2" INSTR CONN., 316 SS WELDED DIAPHRAGM more info
Winters D852542
Winters D852542 - 1/2" WELDED CONN., 1/4" INSTR CONN., 316 SS WELDED DIAPHRAGM
Price: $2,011.17
Sale Price: $1,488.27

1/2" WELDED CONN., 1/4" INSTR CONN., 316 SS WELDED DIAPHRAGM more info
Winters D852543
Winters D852543 - 1/2" WELDED CONN., 1/2" INSTR CONN., 316 SS WELDED DIAPHRAGM
Price: $2,011.17
Sale Price: $1,488.27

1/2" WELDED CONN., 1/2" INSTR CONN., 316 SS WELDED DIAPHRAGM more info
Winters D852536
Winters D852536 - 1/4" PROCESS CONN., 1/4" INSTR CONN., 316 SS WELDED DIAPHRAGM
Price: $2,028.65
Sale Price: $1,501.20

1/4" PROCESS CONN., 1/4" INSTR CONN., 316 SS WELDED DIAPHRAGM more info
Winters D852537
Winters D852537 - 1/4" PROCESS CONN., 1/2" INSTR CONN., 316 SS WELDED DIAPHRAGM
Price: $2,028.65
Sale Price: $1,501.20

1/4" PROCESS CONN., 1/2" INSTR CONN., 316 SS WELDED DIAPHRAGM more info
Winters D852540
Winters D852540 - 1/2" PROCESS CONN., 1/4" INSTR CONN., 316 SS WELDED DIAPHRAGM
Price: $2,139.43
Sale Price: $1,583.18

1/2" PROCESS CONN., 1/4" INSTR CONN., 316 SS WELDED DIAPHRAGM more info
Winters D852541
Winters D852541 - 1/2" PROCESS CONN., 1/2" INSTR CONN., 316 SS WELDED DIAPHRAGM
Price: $2,139.43
Sale Price: $1,583.18

1/2" PROCESS CONN., 1/2" INSTR CONN., 316 SS WELDED DIAPHRAGM more info
Winters D852544
Winters D852544 - 3/4" PROCESS CONN., 1/4" INSTR CONN., 316 SS WELDED DIAPHRAGM
Price: $2,261.82
Sale Price: $1,673.75

3/4" PROCESS CONN., 1/4" INSTR CONN., 316 SS WELDED DIAPHRAGM more info
Winters D852545
Winters D852545 - 3/4" PROCESS CONN., 1/2" INSTR CONN., 316 SS WELDED DIAPHRAGM
Price: $2,261.82
Sale Price: $1,673.75

3/4" PROCESS CONN., 1/2" INSTR CONN., 316 SS WELDED DIAPHRAGM more info
Winters D852546
Winters D852546 - 3/4" WELDED CONN., 1/4" INSTR CONN., 316 SS WELDED DIAPHRAGM
Price: $2,267.70
Sale Price: $1,678.10

3/4" WELDED CONN., 1/4" INSTR CONN., 316 SS WELDED DIAPHRAGM more info
Winters D852547
Winters D852547 - 3/4" WELDED CONN., 1/2" INSTR CONN., 316 SS WELDED DIAPHRAGM
Price: $2,267.70
Sale Price: $1,678.10

3/4" WELDED CONN., 1/2" INSTR CONN., 316 SS WELDED DIAPHRAGM more info
Winters D852692
Winters D852692 - 1" WELDED CONN., 1/4" INSTR CONN., 316 SS WELDED DIAPHRAGM
Price: $2,349.27
Sale Price: $1,738.46

1" WELDED CONN., 1/4" INSTR CONN., 316 SS WELDED DIAPHRAGM more info
Winters D852693
Winters D852693 - 1" WELDED CONN., 1/2" INSTR CONN., 316 SS WELDED DIAPHRAGM
Price: $2,349.27
Sale Price: $1,738.46

1" WELDED CONN., 1/2" INSTR CONN., 316 SS WELDED DIAPHRAGM more info
Winters D852690
Winters D852690 - 1" PROCESS CONN., 1/4" INSTR CONN., 316 SS WELDED DIAPHRAGM
Price: $2,477.54
Sale Price: $1,833.38

1" PROCESS CONN., 1/4" INSTR CONN., 316 SS WELDED DIAPHRAGM more info
Winters D852691
Winters D852691 - 1" PROCESS CONN., 1/2" INSTR CONN., 316 SS WELDED DIAPHRAGM
Price: $2,477.54
Sale Price: $1,833.38

1" PROCESS CONN., 1/2" INSTR CONN., 316 SS WELDED DIAPHRAGM more info
