Winters

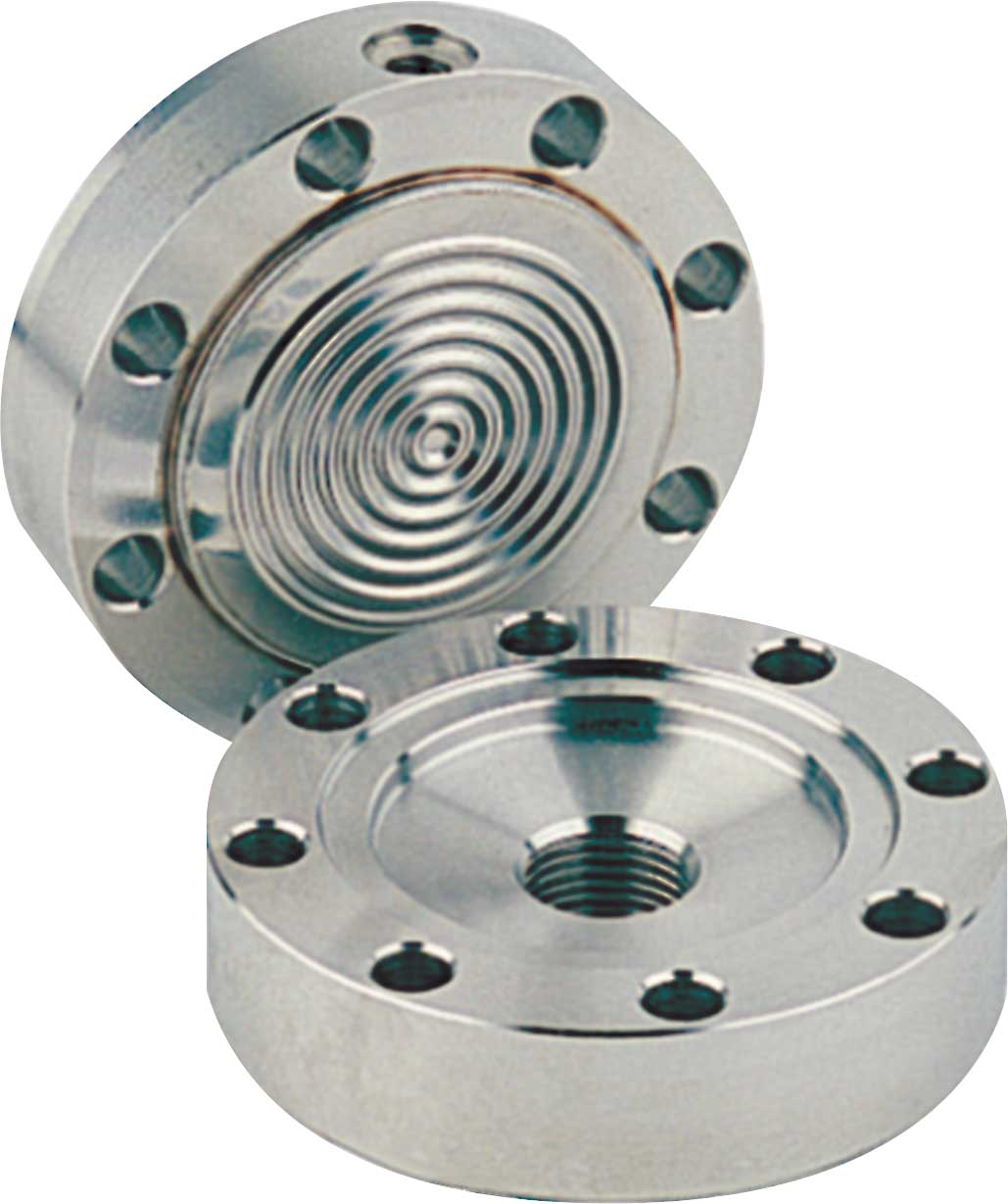

D71 #70 NACE Diaphragm Seal Monel Description & Features: • Can be used on applications requiring a NACE compliant MR0175-2003 diaphragm seal
• ASME B40.100 compliant
• 1 year warranty Applications: • Sour gas applications requiring instrumentation that meet NACE International Standards
Download specifications and order info Custom order engineering part number
| Housing | 316 SS | | | | | Diaphragm | Monel®, welded | | | | | Construction | Two piece construction | | | | | Gasket Material |
Buna N (Viton®, Teflon® optional) | | | | | Connection | Top: 1/4” and 1/2” NPT
Bottom: 1/4”, 1/2””, 3/4” and 1” NPT | | | | | Process Temperature | -22°F to 212°F (-30°C to 100°C) | | | | | Other | Flushing connections available. Other materials available upon request |
|
|
|
