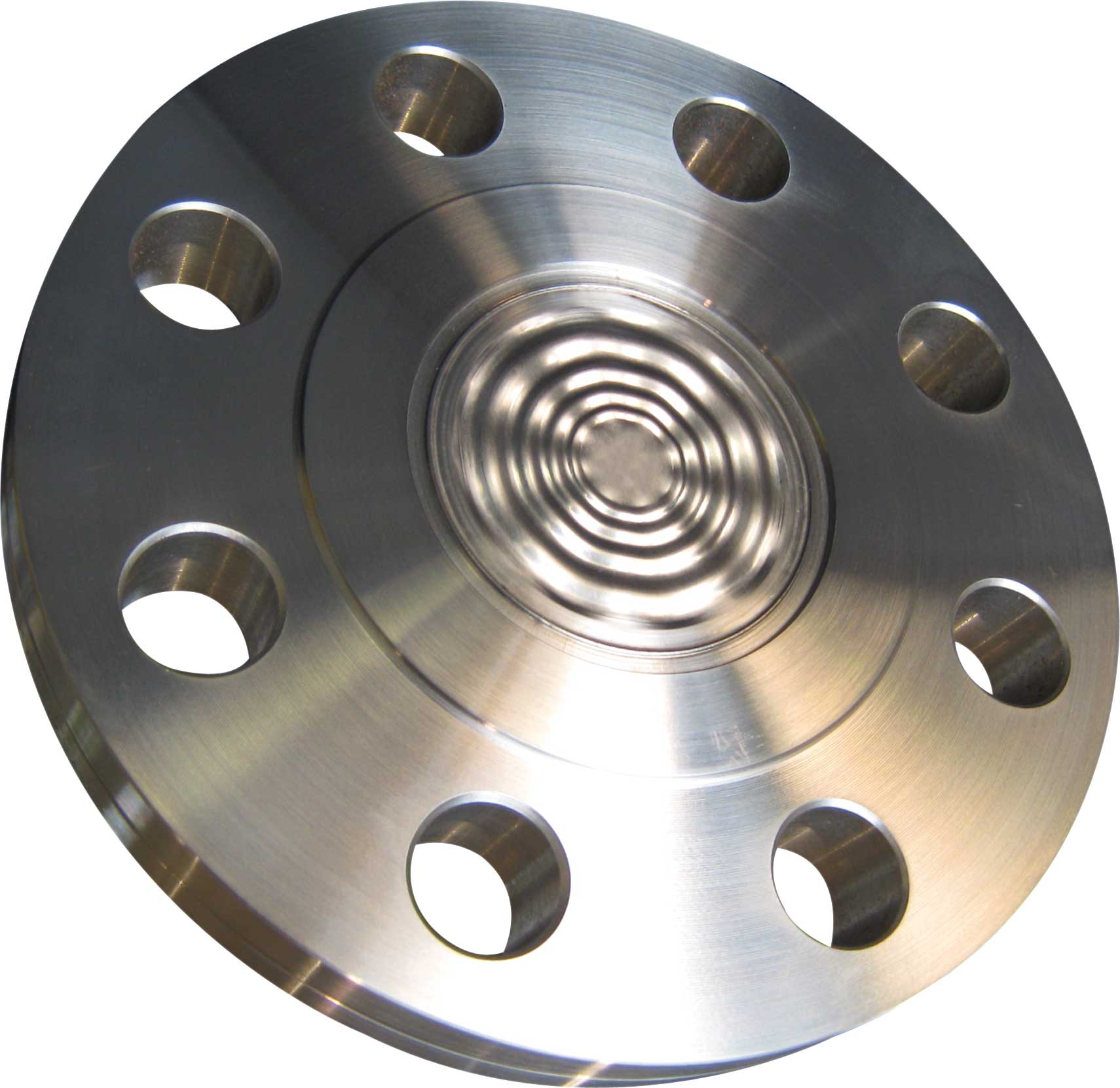

Winters D46 Flanged Flush Mount Seal

Description & Features:

• One-piece design - no internal gaskets or o-rings
• Diaphragm is flush to the gasket sealing surface so no internal cavities for media buildup
• Various sizes available
• 1 year warranty

Applications:

• Oil refineries, pulp and paper mills, chemical plants
• Where media buildup is a concern

Download specifications and order info


Housing316 SS
Diaphragm316L bonded to housing
ConstructionOne piece construction
Connection1/4”, 1/2” NPT female gauge connections standard
1.5" (40mm), 2” (50mm) and 3” (75mm) pipe size
Maximum Temperature Limit450°F (232°C)
Sort By:
1
Winters D462548
Winters D462548 - 1/4" 2" PIPE 150# 316SS HOUSING/DIAPHRAGM
Price: $2,168.51
Sale Price: $1,604.70

1/4" 2" PIPE 150# 316SS HOUSING/DIAPHRAGM more info
Winters D462549
Winters D462549 - 1/2" 2" PIPE 150# 316SS HOUSING/DIAPHRAGM
Price: $2,168.51
Sale Price: $1,604.70

1/2" 2" PIPE 150# 316SS HOUSING/DIAPHRAGM more info
Winters D462550
Winters D462550 - 1/4" 2" PIPE 300# 316SS HOUSING/DIAPHRAGM
Price: $2,460.56
Sale Price: $1,820.81

1/4" 2" PIPE 300# 316SS HOUSING/DIAPHRAGM more info
Winters D462551
Winters D462551 - 1/2" 2" PIPE 300# 316SS HOUSING/DIAPHRAGM
Price: $2,460.56
Sale Price: $1,820.81

1/2" 2" PIPE 300# 316SS HOUSING/DIAPHRAGM more info
Winters D462554
Winters D462554 - 1/4" 3" PIPE 150# 316SS HOUSING/DIAPHRAGM
Price: $2,582.47
Sale Price: $1,911.03

1/4" 3" PIPE 150# 316SS HOUSING/DIAPHRAGM more info
Winters D462555
Winters D462555 - 1/2" 3" PIPE 150# 316SS HOUSING/DIAPHRAGM
Price: $2,582.47
Sale Price: $1,911.03

1/2" 3" PIPE 150# 316SS HOUSING/DIAPHRAGM more info
Winters D462556
Winters D462556 - 1/4" 3" PIPE 300# 316SS HOUSING/DIAPHRAGM
Price: $2,943.86
Sale Price: $2,178.46

1/4" 3" PIPE 300# 316SS HOUSING/DIAPHRAGM more info
Winters D462557
Winters D462557 - 1/2" 3" PIPE 300# 316SS HOUSING/DIAPHRAGM
Price: $2,943.86
Sale Price: $2,178.46

1/2" 3" PIPE 300# 316SS HOUSING/DIAPHRAGM more info
Winters D462552
Winters D462552 - 1/4" 2" PIPE 600# 316SS HOUSING/DIAPHRAGM
Price: $3,130.39
Sale Price: $2,316.49

1/4" 2" PIPE 600# 316SS HOUSING/DIAPHRAGM more info
Winters D462553
Winters D462553 - 1/2" 2" PIPE 600# 316SS HOUSING/DIAPHRAGM
Price: $3,130.39
Sale Price: $2,316.49

1/2" 2" PIPE 600# 316SS HOUSING/DIAPHRAGM more info
Winters D462558
Winters D462558 - 1/4" 3" PIPE 600# 316SS HOUSING/DIAPHRAGM
Price: $3,537.87
Sale Price: $2,618.02

1/4" 3" PIPE 600# 316SS HOUSING/DIAPHRAGM more info
Winters D462559
Winters D462559 - 1/2" 3" PIPE 600# 316SS HOUSING/DIAPHRAGM
Price: $3,537.87
Sale Price: $2,618.02

1/2" 3" PIPE 600# 316SS HOUSING/DIAPHRAGM more info
