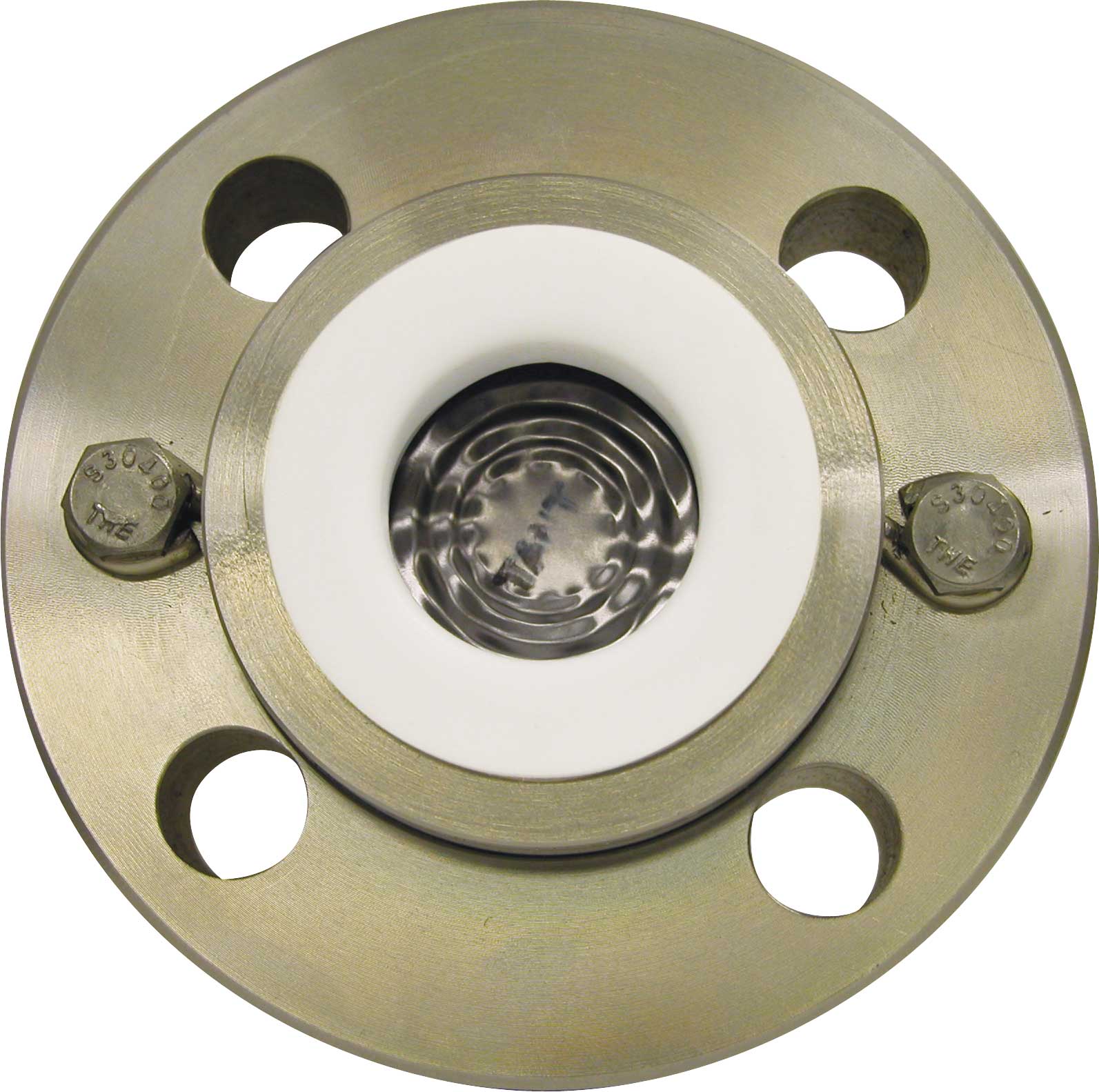

Winters D44 #80 Flanged Diaphragm Seal Teflon

Description & Features:

• “Continuous use” seals - backing plate will prevent diaphragm from rupturing if pressure sensing instrument fails. Pressure will be held until instrument is replaced
• Various sizes and housing materials available
• ASME B40.1 compliant
• 1 year warranty

Applications:

• Used in industrial applications such as oil refineries, pulp and paper mills and chemical plants


Download specifications and order info

Custom order engineering part number

Housing316 SS, Monel®, Hastelloy® B & C, Titanium, Tantalum, PVC, Carbon steel, Teflon®, Alloy 20, other (nickel plated carbon steel or SS upper housing standard)
DiaphragmTeflon® for increased compatibility, sensitivity and versatility
ConstructionTwo piece construction
Connection1/4”, 1/2” NPT female gauge connections standard (Other NPTF gauges connections available)
1” (25mm), 1.5” (40mm) and 2” (50mm) pipe size and #150 and #300 pressure
rating standard (Other configurations available)
Maximum Temperature Limit400°F (204°C)
Sort By:
1 2
Winters D44001
Winters D44001 - 1#150RF-PTFE, 1/2"NPT, CARBON STEEL
Price: $1,232.20
Sale Price: $911.83

1#150RF-PTFE, 1/2"NPT, CARBON STEEL more info
Winters D44009
Winters D44009 - 1.5" 150#RF 316SS LOWER X 1/2" CARBON STEEL UPPER
Price: $1,442.24
Sale Price: $1,067.26

1.5" 150#RF 316SS LOWER X 1/2" CARBON STEEL UPPER more info
Winters D44011
Winters D44011 - 1.5" 150#RF 316SS LOWER X 1/4" CARBON STEEL UPPER
Price: $1,442.24
Sale Price: $1,067.26

1.5" 150#RF 316SS LOWER X 1/4" CARBON STEEL UPPER more info
Winters D44003
Winters D44003 - 1#150RF-PTFE, 1/4"NPT, CARBON STEEL
Price: $1,532.21
Sale Price: $1,133.84

1#150RF-PTFE, 1/4"NPT, CARBON STEEL more info
Winters D44013
Winters D44013 - 1.5" 300#RF 316SS LOWER X 1/2" CARBON STEEL UPPER
Price: $1,674.37
Sale Price: $1,239.03

1.5" 300#RF 316SS LOWER X 1/2" CARBON STEEL UPPER more info
Winters D44015
Winters D44015 - 1.5" 300#RF 316SS LOWER X 1/4" CARBON STEEL UPPER
Price: $1,674.37
Sale Price: $1,239.03

1.5" 300#RF 316SS LOWER X 1/4" CARBON STEEL UPPER more info
Winters D44017
Winters D44017 - 2" 150#RF 316SS LOWER X 1/2" CARBON STEEL UPPER
Price: $1,718.53
Sale Price: $1,271.71

2" 150#RF 316SS LOWER X 1/2" CARBON STEEL UPPER more info
Winters D44019
Winters D44019 - 2" 150#RF 316SS LOWER X 1/4" CARBON STEEL UPPER
Price: $1,718.53
Sale Price: $1,271.71

2" 150#RF 316SS LOWER X 1/4" CARBON STEEL UPPER more info
Winters D44002
Winters D44002 - 1" #150RF-PTFE, 1/2" NPT, SS UPPER
Price: $1,889.82
Sale Price: $1,398.47

1" #150RF-PTFE, 1/2" NPT, SS UPPER more info
Winters D44004
Winters D44004 - 1" #150RF-PTFE, 1/4" NPT, SS UPPER
Price: $1,889.82
Sale Price: $1,398.47

1" #150RF-PTFE, 1/4" NPT, SS UPPER more info
Winters D44008
Winters D44008 - 1" 300#RF 316SS LOWER X 1/4" SS UPPER
Price: $1,889.82
Sale Price: $1,398.47

1" 300#RF 316SS LOWER X 1/4" SS UPPER more info
Winters D44021
Winters D44021 - 2" 300#RF 316SS LOWER X 1/2" CARBON STEEL UPPER
Price: $1,945.06
Sale Price: $1,439.34

2" 300#RF 316SS LOWER X 1/2" CARBON STEEL UPPER more info
Winters D44023
Winters D44023 - 2" 300#RF 316SS LOWER X 1/4" CARBON STEEL UPPER
Price: $1,945.06
Sale Price: $1,439.34

2" 300#RF 316SS LOWER X 1/4" CARBON STEEL UPPER more info
Winters D44012
Winters D44012 - 1.5" 150#RF 316SS LOWER X 1/4" SS UPP
Price: $2,158.54
Sale Price: $1,597.32

1.5" 150#RF 316SS LOWER X 1/4" SS UPP more info
Winters D44010
Winters D44010 - 1.5" 150#RF 316SS LOWER X 1/2" SS UPP
Price: $2,160.61
Sale Price: $1,598.85

1.5" 150#RF 316SS LOWER X 1/2" SS UPP more info
Winters D44006
Winters D44006 - 1" 300#RF 316SS LOWER X 1/2" SS UPPER
Price: $2,163.10
Sale Price: $1,600.69

1" 300#RF 316SS LOWER X 1/2" SS UPPER more info
Winters D44005
Winters D44005 - 1#300RF-PTFE, 1/2"NPT, CARBON STEEL
Price: $2,343.36
Sale Price: $1,734.09

1#300RF-PTFE, 1/2"NPT, CARBON STEEL more info
Winters D44007
Winters D44007 - 1#300RF-PTFE, 1/4"NPT, CARBON STEEL
Price: $2,343.36
Sale Price: $1,734.09

1#300RF-PTFE, 1/4"NPT, CARBON STEEL more info
Winters D44014
Winters D44014 - 1.5" 300#RF 316SS LOWER X 1/2" SS UPP
Price: $2,392.58
Sale Price: $1,770.51

1.5" 300#RF 316SS LOWER X 1/2" SS UPP more info
Winters D44016
Winters D44016 - 1.5" 300#RF 316SS LOWER X 1/4" SS UPP
Price: $2,392.58
Sale Price: $1,770.51

1.5" 300#RF 316SS LOWER X 1/4" SS UPP more info
