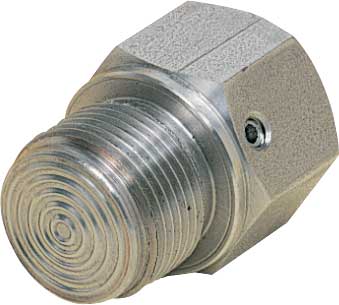

D15 #15 Diaphragm Seal Description & Features: • Constructed with a welded diaphragm placed at the end of the male NPT connection, eliminating the normal diaphragm chamber where solidification of the process media may render the seal inoperable
• Rugged and suitable for the most severe process applications
• ASME B40.100 compliant
• 1 year warranty Applications: • Suitable for any process where freezing or solidification of the pressure media is a concern Download specifications and order info
| Housing | AISI 316 SS | | | | | Diaphragm | AISI 316L SS, welded | | | | | Minimum Operating Pressure | 50 psi (345 kPa) | | | | | Maximum perating Pressure | 5,800 psi (40,000 kPa) | | | | | Gauge Connection | 1/4” NPT female | | | | | Process Connection | 3/4” NPT male | | | | | Process Temperature | -20°F to 360°F (-31°C to 185°C) | | | |
|
