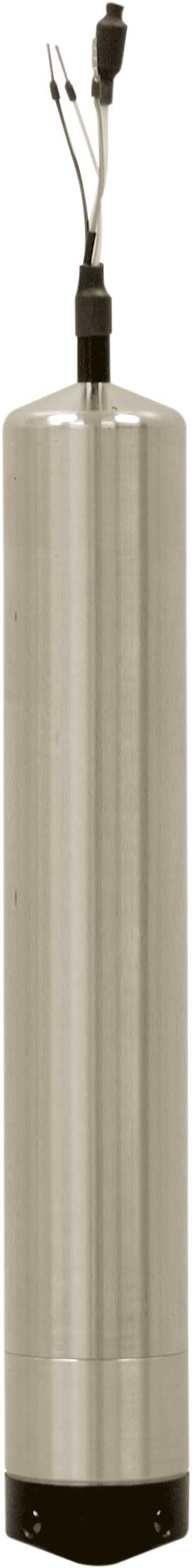

Winters LM3 Slim Line All-Purpose Submersible Transmitter

Description & Features:

• Slimline probe is especially suited for applications with restricted space
• Designed for continuous level measurement in water or other liquids with low viscosity
• 316L SS probe with stainless steel sensor for ease in cleaning
• Available ranges from H2O up to 300 psi
• ±0.35% accuracy rating
• NEMA 6P / IP68
• Approved for outdoor use
• Customizable
• 1 year warranty

Applications:

• Ideal for restricted space conditions in level and depth measurement applications including ground water and wells

Download specifications and order info

Custom order engineering part number

Output Signal	Standard 2-wire: 4-20 mA / Vs = 12-36 Vdc

Accuracy	<±0.35% FSO BFSL Optional nominal pressure > 5 psi: <±0.25% FSO BFSL

Permissible Load	Rmax = [(Vs - Vs min) / 0.02] Ohm

Influence Effects	Supply: 0.05% FSO / 10 V Load: 0.05% FSO / kOhm

Long-term Stability	<±0.1% FSO/yr

Response Time	<10 msec

Permissible Temperatures	Medium: 14°F to 158°F (-10°C to 70°C) Storage: -13°F to 158°F (-25°C to 70°C)

Reserve Polarity Protection	No damage. No function.

Electromagnetic Compatibility	Emission and immunity according to EN 61326

Electrical Connection	Cable with sheath material: PVC grey, PUR black, FEP black

Housing	316Ti SS

Seals	FKM (Viton®, Kalrez®) / EPDM (Nordel®)

Diaphragm	316L SS

Weight	100 g (without cable)

Current Consumption	Current: 25 mA max

Connecting Cables	Cable capacitance: Signal line/shield and signal line/signal line: 160 pF/m Cable inductance: Signal line/shield and signal line/signal line: 1 µH/m

Enclosure Rating	NEMA 6P / IP68
