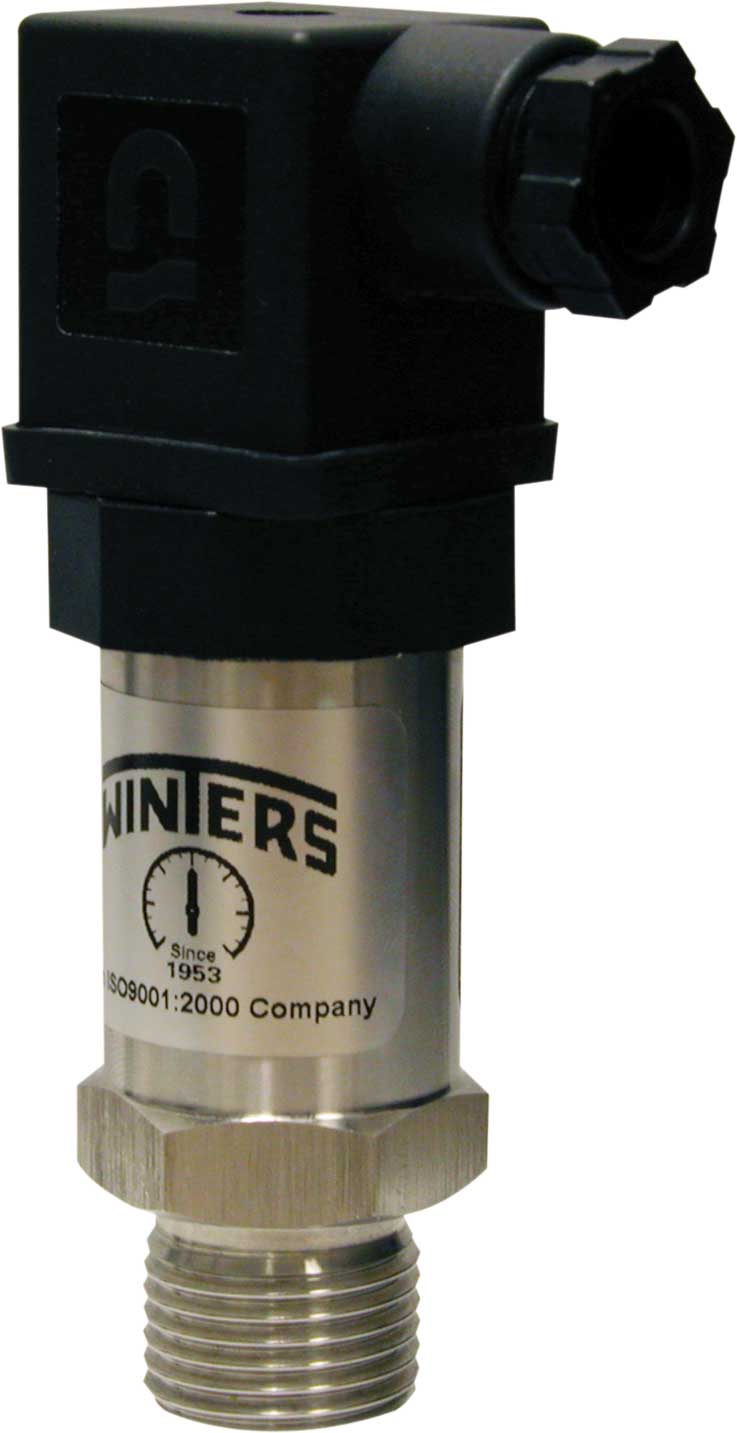

LIM Aggressive Media Transmitter Description & Features: • Universal transmitter with a high level of accuracy and stability
• Designed especially for aggressive media
• Rugged stainless steel construction with ceramic sensor
• Available ranges include in/Hg up to 8,700 psi
• Wide range of mechanical and electrical connections
• ±0.25% accuracy
• NEMA 4X and 6P / IP65, IP67 and IP68
• CE, CSA and RoHs compliant
• Approved for outdoor use
• Customizable
• 1 year warranty Applications: • Appropriate for environmental monitoring, machine tool and presses, test equipment and many other applications
Download specifications and order info Custom order engineering part number
| Output Signal | Standard 2-wire: 4-20 mA / Vs = 12-36 Vdc
Optional 3-wire: 0-20 mA / Vs = 14-36 Vdc
0-10 V / Vs = 14-36 Vdc | | | | | Accuracy | ±0.25% FSO | | | | Permissible Load
| Current 2-wire: Rmax = [(Vs - Vs min) / 0.02] Ohm
Current 3-wire: Rmax = 500 Ohm
Voltage 3-wire: Rmin = 10 kOhm
|
| | Influence Effects
| Supply: 0.05% FSO / 10 V
Load: 0.05% FSO / kOhm
|
| | Response Time
| <10 msec
|
| | Thermal Error
| <±0.2% FSO / 10K
In compensated range: -13°F to 185°F (-25°C to 85°C)
|
| | Permissible Temperatures
| Medium: -40°F to 275°F (-40°C to 135°C)
Electronics environment: -40°F to 185°F (-40°C to 85°C)
Storage: -40°F to 212°F (-40°C to 100°C)
|
| | Short-circuit Protection
| Permanent
| | | | Reverse Polarity Protection
| No damage. No function.
|
| | Electromagnetic Protection
| Emission and immunity according to EN 61326
|
| | Stability
| Vibration: 10 g RMS (20 to 2,000 Hz)
Shock: 100 g / 11 msec
|
| | Pollution Degree
| 4, electrical equipment for outdoor use
|
| | Housing
| 304 SS
|
| | Pressure Port
| 316 Ti SS
| | | | | Wetted Parts | Seals: PN < 1450 psi: FKM (Viton®, Kalrez®). PN > 1450 psi: NBR (Buna N). Others available.
Diaphragm: Ceramic AI2O3 96%
| | | | Weight
| 140 g
| | | | Current Consumption
| Current: 25 mA max
Voltage: 7 mA max
| | | | Operation Life
| >100 × 106 cycles
| | | | Connecting Cables
| Cable capacitance: Signal line/shield and signal line/signal line: 160 pF/m
Cable inductance: Signal line/shield and signal line/signal line: 1 µH/m |
|
