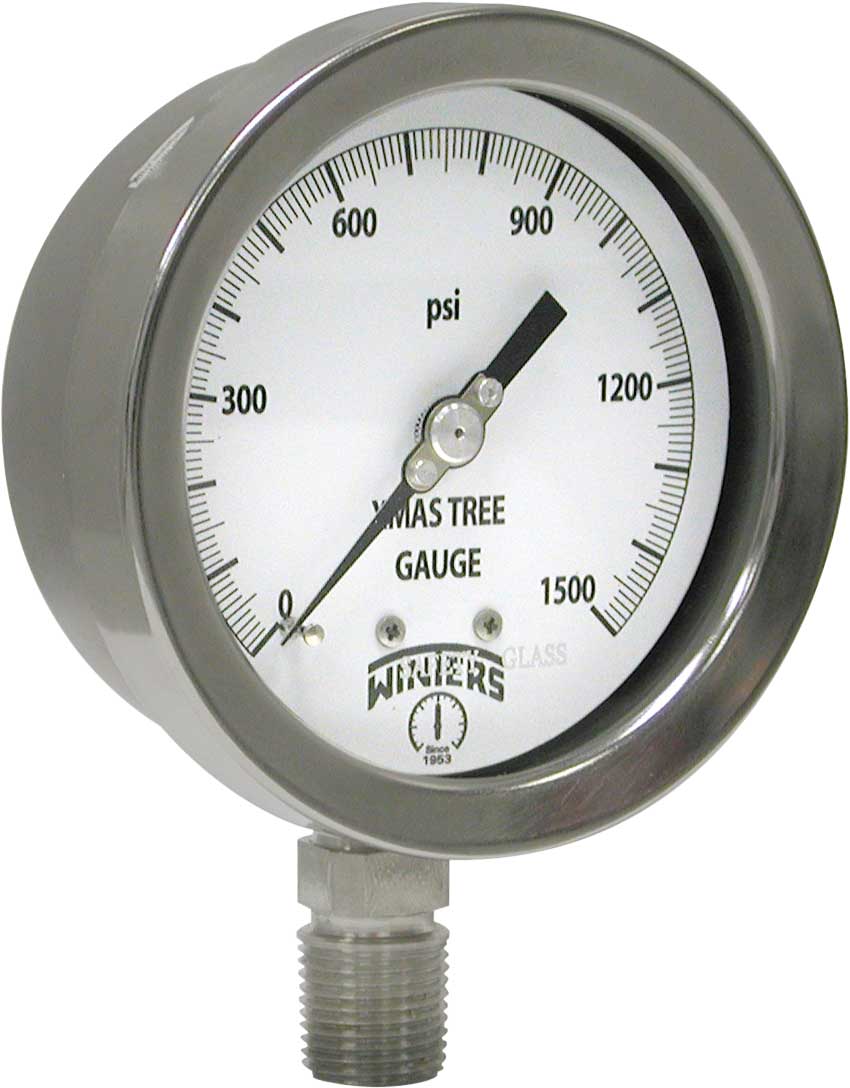

Winters PXT Xmas Tree Pressure GaugeDescription & Features: • High quality, heavy duty gauge ideal for corrosive environments
• Stainless steel liquid filled gauge (dry optional)
• 1/2” NPT bottom
• Stainless steel wetted parts
• Heavy duty movement and Bourdon Tube
• Restrictor screw standard
• ASME B40.100 compliant
• 5 year warranty Applications: • Outdoor and severe ambient and process conditions
• Where harmful vibration and pulsation are present
• Designed to the specific needs of oil field equipment Download specifications and order info Custom order engineering part number
| Dial | 4” (100mm) white aluminum with black markings | | | | | Case | AISI 304 SS | | | | | Lens | Safety glass standard; acrylic optional
| | | | | Ring | AISI 304 SS | | | | | Socket | Welded, 316L SS | | | | | Connection | 1/2” NPT standard, 1/4” NPT available | | | | | Bourdon Tube | 316L SS, seamless drawn | | | | | Movement | 304 SS with over and under stops | | | | | Pointer | Aluminum, anodized black, micrometer adjustable | | | | | Welding | TIG | | | | Over-pressure Limit
| 30% for pressures up to 600 psi (4,147 kPa),
15% for pressures over 600 psi (4,147 kPa) | | | | | Gasket Materials | EPDM | | | | | Working Pressure | Maximum 75% of full scale value | | | | | Ambient/Process Temperature | Dry: -40°F to 200°F (-40°C to 93°C)
Glycerin filled: -4°F to 150°F (-20°C to 65°C) | | | | | Accuracy | ±1% ANSI/ASME Grade 1A | | | | | Enclosure Rating | IP66 per UEC 529, UNI 8896 |
|
|
|
