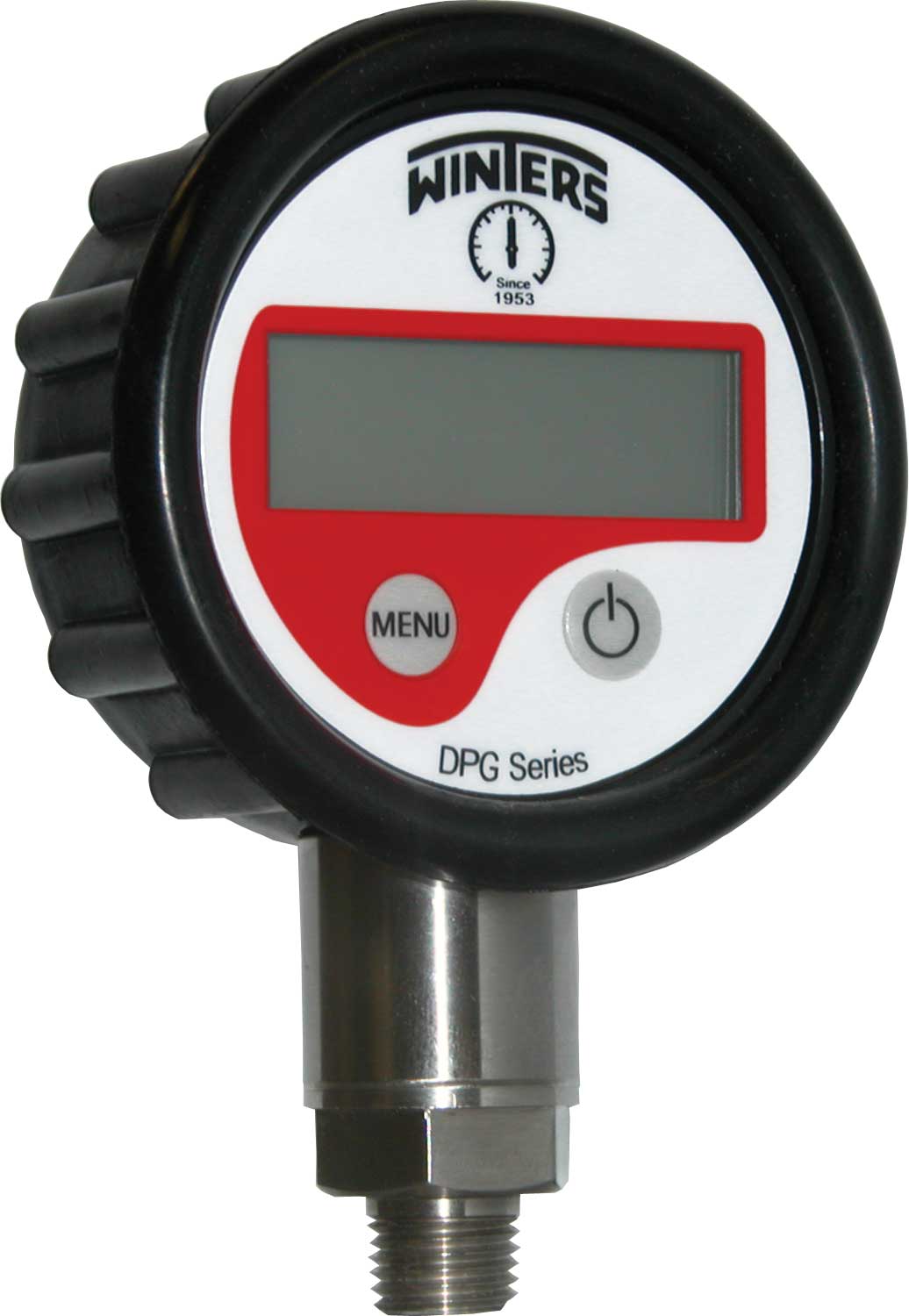

DPG Digital Pressure Gauges  Description & Features: • Simple 2 button operation
• Re-zero feature and peak pressure reading
• Backlight turns on when on/off button is pressed and with pressure changes
• 316L welded diaphragm seal
• 5 year warranty Applications: • Ideal for commercial and industrial applications in both test measurement and general purpose installations Download specifications and order info Download operation instructions
Case Size
| 2.5" (63mm) | | | | Case Material
| ABS (IP64)
| | | | Rubber Boot
| Silicone rubber (IP65)
| | | | LCD Display
| 2" x 3/4" (48mm x 16mm)
| | | | | Connection | 1/4" NPT 304SS
| | | | | Sensor | 316L welded, Piezo
| | | | Operation Life
| 1 million cycles
| | | | Power Supply
| 2 x AAA battery (1.5V) | | | | Battery Life
| 2yrs (auto shut-off mode)
| | | | Power Mode
| Auto or manual shut-off
| | | | | Display Digits | 4 digits to 5,000 psi
5 digits for 10,000 psi | | | | | Resolution | 1 digit | | | | Pressure Unit Selection
| psi, mmH2O, mmHg, mbar, kPa ≤ 100 psi
psi, bar, kg/cm2, mPa, atm ranges ≥ 160 psi | | | | | Operation Mode | Continuously reading or peak pressue reading | | | | Response Time
| ≤ 3 Hz display refresh rate
| | | | Proof / Burst Pressure
| 200% / 300% FS
| | | | | Operating / Storage Temperature | 14°F to 122°F (-10°C to 50°C)
-4°F to 167°F (-20°C to 75°C) | | | | | Accuracy | ±1% |
| DPG -
DIGITAL PRESSURE GAUGES |
|
| Dial Size |
2.5" |
| Pressure
Range Selection - psi, mmH2O, mmHg,
mbar, kPa < 100 psi, psi, bar,
kg/cm2, mPa, atm ranges > 160 psi |
1/4" NPT Btm
Connect |
| 30" Hg VAC |
DPG210 |
| 30"/0/15
PSI |
DPG203 |
| 30"/0/30
PSI |
DPG204 |
| 30"/0/60
PSI |
DPG205 |
| 30"/0/100
PSI |
DPG206 |
| 0/15 PSI |
DPG211 |
| 0/30 PSI |
DPG212 |
| 0/60 PSI |
DPG213 |
| 0/100 PSI |
DPG214 |
| 0/160 PSI |
DPG215 |
| 0/200 PSI |
DPG216 |
| 0/300 PSI |
DPG217 |
| 0/600 PSI |
DPG218 |
| 0/1,000 PSI |
DPG219 |
| 0/1,500 PSI |
DPG220 |
| 0/23,000 PSI |
DPG221 |
| 0/3,000 PSI |
DPG222 |
| 0/5,000 PSI |
DPG223 |
| 0/10,000 PSI |
DPG224 |
|
|
|
