Winters PET Economy Test Gauge and PET-LF Lead Free Economy Test Gauge Description & Features: • Economical pressure gauge and valve body assembly used for pressure testing
• Bleed port and plated housing on the gas test assembly

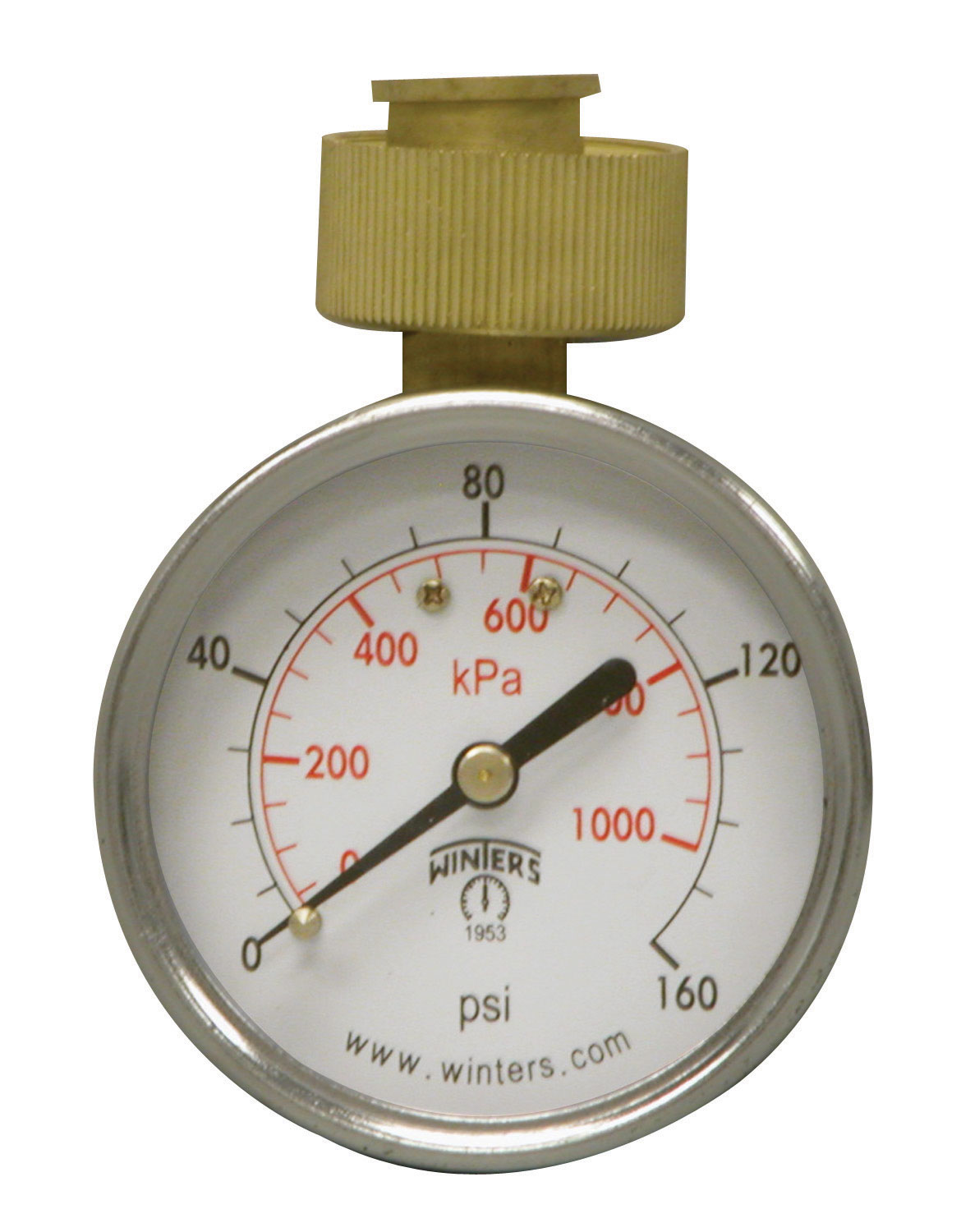

• Swivel hose adaptor on the Water Test Gauge
• Black steel case
• Brass or lead free brass wetted parts
• Dual scale (PSI/kPa)
• ±3-2-3% accuracy
• ASME B40.100 compliant
• CRN registered
• 5 year warranty Applications:  • Residential & commercial pressure testing of gas, air and water lines Download PET specifications and order info Download PET-LF specifications and order info Download Lead Free Certificate of Conformance Custom order engineering part number
| Dial | 2" (50 mm), 2.5" (63 mm) white aluminum with black and red markings | | | | | Case | Steel painted black | | | | | Lens | Polycarbonate | | | | | Ring | Steel, painted black | | | | | Bourdon Tube | PET: Phosphor bronze
PET-LF: Lead free phosphor bronze | | | | | Movement | Brass | | | | | Pointer | Aluminum, black | | | | | Connection | Gas Test Gauge: 3/4” FNPT
Water Test Gauge: 3/4” female swivel hose connection | | | | | Maximum Pointer | Available on Water Test Gauge only | | | | | Welding | #50 tin solder | | | | | Ambient/Process Temperature | -40°F to 150 °F (-40°C to 65°C) | | | | | Gas Test | 40°F to 150 °F (-40°C to 65°C) | | | | | Water Test | 32°F to 150 °F (0°C to 65°C) | | | | | Working Pressure | Maximum 75% of full scale value | | | | | Accuracy | ±3-2-3% ANSI/ASME Grade B | | | | | Enclosure Rating | IP52 |
|
