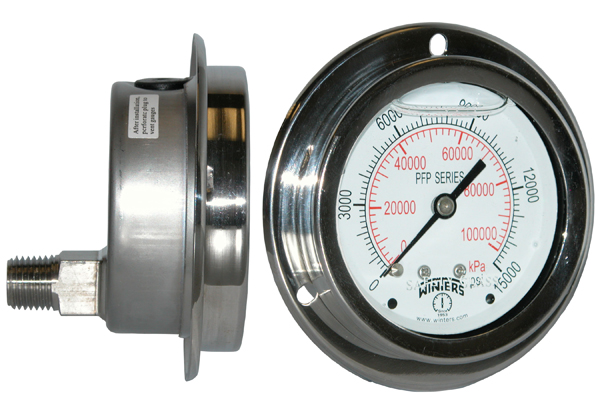

Winters PFP Premium Stainless Steel Liquid Filled Pressure Gauge for Panel MountingDescription & Features: • Liquid filled stainless steel case protects against extreme vibration and pulsation
• Lower back mount with front flange for panel mounting
• Bayonet ring and restrictor screw
• Dual and single scale available (psi/kPa & psi only)
• Stainless steel wetted parts
• Safety glass
• ASME B40.100 compliant
• CRN registered
• 5 year warranty Applications: • Outdoor and severe ambient and process conditions
• Use where harmful vibration and pulsation are present
• Hydraulic equipment, oil field equipment, pumps, compressors and process systems Download specifications and order info Download technical drawings
| | Stainless Steel Internals
| | Dial | 2.5” (63mm) white aluminum with black and red markings | | | | | Case | AISI 304 SS | | | | | Lens | Safety glass | | | | | Ring | AISI 304 SS | | | | | Socket | 316 SS Welded one-piece socket
| | | | | Connection | 1/4” NPT | | | | | Bourdon Tube | 316 SS, drawn seamless | | | | | Movement | 304 SS | | | | | Pointer | 2.5” (63mm): Aluminum, anodized black | | | | | Welding | TIG | | | | | Fill Liquid | Glycerin | | | | | Over-Pressure Limit | 30% for pressures up to 600 psi (4,147 kPa), 15% for pressures over 600 psi (4,147 kPa) | | | | | Fill Plug | Buna N (Silicone rubber option) | | | | | Lens Ring Gasket | Buna N (Silicone rubber option) | | | | | Working Pressure | Maximum 75% of full scale value | | | | | Ambient/Process Temperature | Dry: -40°F to 200°F (-40°C to 93°C)
Glycerin filled: -4°F to 150°F (-20°C to 65°C) | | | | | Accuracy | ±1.5% of full scale | | | | | Enclosure Rating | NEMA 4X/IP66, EN60529-1 (IEC529-1) |
|
|
|
