HN4 Series Two Door Floormount Enclosures - NEMA 4
Continuous Hinge, 3pt Handle

Application
- Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- Provides protection where equipment may be hosed down or
otherwise be very wet, or in outdoor applications for full weather
protection.
Standards
- UL 508 Type 3R, 4 and 12
- CSA Type 3R, 4 and 12
- Complies with:
- NEMA Type 3R, 4, 12 and 3
- IEC 60529, IP66

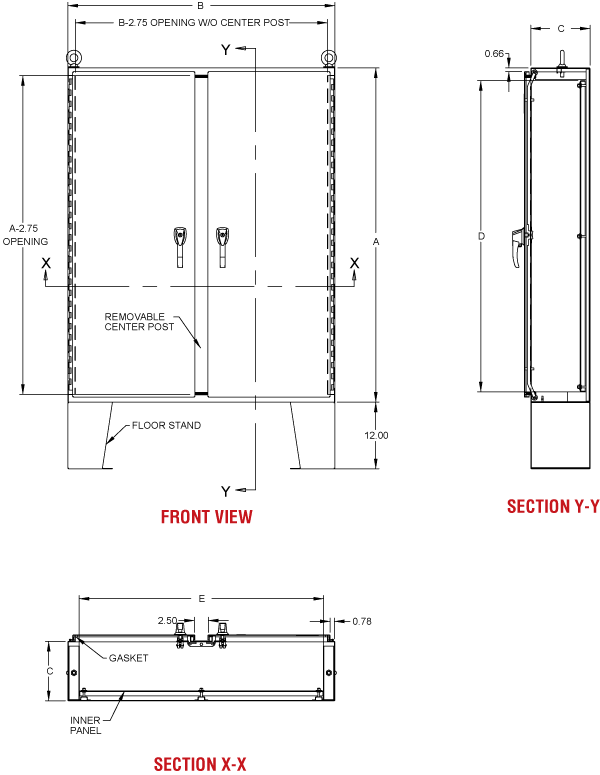

Construction
- Formed 12 gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Lifting eyes provide for easy enclosure handling.
- Doors are supported with heavy gauge continuous hinges.
- New 3-pt padlocking door handle.
- Oil resistant gaskets are permanently secured and mechanically retained.
- A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
- Center post is removable for easy installation of the inner panel.
- 12” floor stands are welded to the enclosure.
Finish
- Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
- Removable white inner panel is finished in white powder coating.
Accessories
- Air conditioners
- Blowers
- Breather kits
- Door stop kits
- Drip shield kits
- Enclosure stabilizers
- Filter fans
- Floor stand kits
- Gland plates
- Heaters
- Inner panels
- Light kit
- Louvered ventilating plates
- Thermostats
- Window kits
|
