1418 Series Single Door Enclosures - NEMA 12, 13

Continuous Hinge, Clamped Cover

Application

Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
Provides a degree of protection from falling dirt, dust, oil and water.

Standards

UL 508 Type 12 and 13
CSA Type 12 and 13
Complies with
- NEMA Type 12 and 13
- JIC EGP-1-1967 unless marked¹
- IEC 60529, IP54

Construction

Formed 14 gauge steel bodies and doors.
Smooth, continuously welded seams without knockouts, cutouts or holes.
Door and body stiffeners are provided in the larger enclosures for extra rigidity.
Welded brackets provide for enclosure mounting.
Formed lip on door and enclosure exclude flowing liquids and contaminants.
Continuously hinged door may be removed by pulling the hinge pin.
Door is secured with easily operated stainless steel clamps.
Provision for padlocking.
Oil resistant gaskets are permanently secured.
A removable 12 gauge inner panel is included.
Collar studs are provided for mounting inner panels.
A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
A literature pocket is provided for the inside of the door.

Finish

Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating on the outside, with white powder coating on the inside.
Removable inner panel is finished in white powder coating.

Accessories

Additional Inner Panels
Air conditioners
Blowers
Breather Kits
Door Clamping Hardware
Door Stop Kits
Drip Shield Kits
Enclosure stabilizers
Filter Fans
Floor stand kits
Gland plates
Heaters
Lock kit
Louvered Ventilating Plates
Quick release clamp
Terminal Kit Assemblies
Thermostats
Window kits

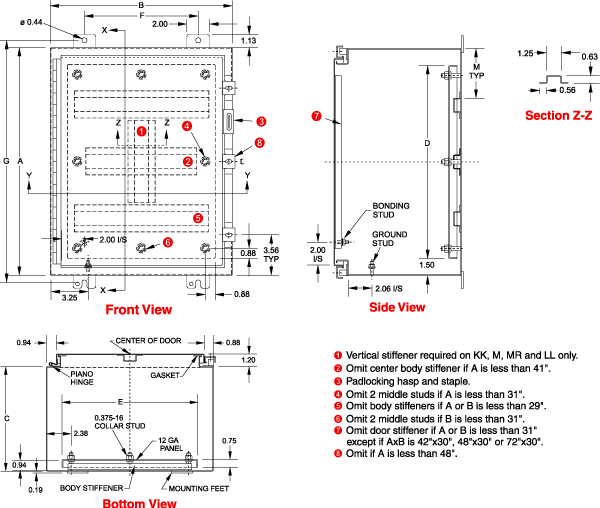

Part No.				Panel Size		Centers		Ship
Part No.	A	B	C	D	E	F	G	Wt. lbs
1418A6	12	24	6	9	21	18	13.25	34
1418B6	16	12	6	13	9	9.5	17.25	26
1418G6	16	16	6	13	13	10	17.25	32
1418CR6	16	20	6	13	17	14	17.25	38
1418CA6	20	12	6	17	9	9.5	21.25	32
1418C6	20	16	6	17	13	10	21.25	38
1418D6	20	20	6	17	17	14	21.25	48
1418ER6	20	24	6	17	21	18	21.25	54
1418AR6	24	12	6	21	9	9.5	25.25	36
1418H6	24	16	6	21	13	10	25.25	46
1418E6	24	20	6	21	17	14	25.25	54
1418J6	24	24	6	21	21	18	25.25	62
1418FG6	30	16	6	27	13	10	31.25	56
1418F6	30	20	6	27	17	14	31.25	66
1418K6	30	24	6	27	21	18	31.25	76
1418L6	36	24	6	33	21	18	37.25	91
1418M6	36	30	6	33	27	24	37.25	114
1418A8	12	24	8	9	21	18	13.25	38
1418B8	16	12	8	13	9	9.5	17.25	28
1418G8	16	16	8	13	13	10	17.25	34
1418CR8	16	20	8	13	17	14	17.25	43
1418CA8	20	12	8	17	9	9.5	21.25	35
1418C8	20	16	8	17	13	10	21.25	40
1418D8	20	20	8	17	17	14	21.25	48
1418ER8	20	24	8	17	21	18	21.25	61
1418AR8	24	12	8	21	9	9.5	25.25	40
1418H8	24	16	8	21	13	10	25.25	50
1418E8	24	20	8	21	17	14	25.25	58
1418J8	24	24	8	21	21	18	25.25	68
1418KR8	24	30	8	21	27	24	25.25	82
1418KA8	30	12	8	27	9	9.5	31.25	50
1418KG8	30	16	8	27	13	10	31.25	60
1418F8	30	20	8	27	17	14	31.25	70
1418K8	30	24	8	27	21	18	31.25	82
1418KK8	30	30	8	27	27	24	31.25	102
1418MR8	30	36	8	27	33	30	31.25	124
1418L8	36	24	8	33	21	18	37.25	96
1418M8	36	30	8	33	27	24	37.25	120
1418LL8¹	36	36	8	33	33	30	37.25	142
1418N8	42	24	8	39	21	18	43.25	110
1418O8¹	42	30	8	39	27	24	43.25	132
1418P8¹	42	36	8	39	33	30	43.25	182
1418Q8	48	24	8	45	21	18	49.25	122
1418R8¹	48	30	8	45	27	24	49.25	173
1418S8¹	48	36	8	45	33	30	49.25	201
1418T8¹	60	36	8	57	33	30	61.25	246
1418B10	16	12	10	13	9	9.5	17.25	30
1418C10	20	16	10	17	13	10	21.25	44
1418D10	20	20	10	17	17	14	21.25	52
1418AR10	24	12	10	21	9	9.5	25.25	42
1418E10	24	20	10	21	17	14	25.25	64
1418J10	24	24	10	21	21	18	25.25	73
1418F10	30	20	10	27	17	14	31.25	76
1418K10	30	24	10	27	21	18	31.25	86
1418L10	36	24	10	33	21	18	37.25	105
1418M10	36	30	10	33	27	24	37.25	124
1418O10¹	42	30	10	39	27	24	43.25	140
1418P10¹	42	36	10	39	33	30	43.25	192
1418R10¹	48	30	10	45	27	24	49.25	162
1418S10¹	48	36	10	45	33	30	49.25	208
1418T10¹	60	36	10	57	33	30	61.25	258
1418C12	20	16	12	17	13	10	21.25	48
1418E12	24	20	12	21	17	14	25.25	68
1418J12	24	24	12	21	21	18	25.25	76
1418K12	30	24	12	27	21	18	31.25	90
1418KK12	30	30	12	27	27	24	31.25	114
1418L12	36	24	12	33	21	18	37.25	108
1418M12	36	30	12	33	27	24	37.25	132
1418LL12¹	36	36	12	33	33	30	37.25	156
1418O12¹	42	30	12	39	27	24	43.25	150
1418P12¹	42	36	12	39	33	30	43.25	198
1418S12¹	48	36	12	45	33	30	49.25	222
1418T12¹	60	36	12	57	33	30	61.25	264
1418U12¹	72	30	12	69	27	24	73.25	272
1418V12	72	36	12	69	33	30	73.25	312
1418E16	24	20	16	21	17	14	25.25	74
1418J16	24	24	16	21	21	18	25.25	86
1418K16	30	24	16	27	21	18	31.25	102
1418M16	36	30	16	33	27	24	37.25	140
1418P16¹	42	36	16	39	33	30	43.25	214
1418S16¹	48	36	16	45	33	30	49.25	238
1418T16¹	60	36	16	57	33	30	61.25	290
1418U16¹	72	30	16	69	27	24	73.25	290
1418K20	30	24	20	27	21	18	31.25	112
1418M20	36	30	20	33	27	24	37.25	152
1418S20¹	48	36	20	45	33	30	49.25	256
1418T20¹	60	36	20	57	33	30	61.25	300
1418U20¹	72	30	20	69	27	24	73.25	308
1418K24	30	24	24	27	21	18	31.25	142
1418U24¹	72	30	24	69	27	24	73.25	332
¹ Does not meet JIC requirements
² Flat Panel
