1418 N4 Series Single Door Enclosures - NEMA 4

Continuous Hinge, Clamped Cover

Application

Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.

Standards

UL 508 Type 3R,12, 4
CSA Type 3R, 12, 4
Complies with
- NEMA Type 3R, 4, 12 and 13
- JIC EGP-1-1967 unless marked¹
- IEC 60529, IP66

Construction

Formed 14 gauge steel bodies and doors.
Smooth, continuously welded seams without knockouts, cutouts or holes.
Door and body stiffeners are provided in the larger enclosures for extra rigidity.
Welded brackets provide for enclosure mounting.
Formed lip on door and enclosure exclude flowing liquids and contaminants.
Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin.
Door is secured with easily operated stainless steel clamps.
Provision for padlocking.
Oil resistant gaskets are permanently secured.
A removable 12 gauge inner panel is included.
Collar studs are provided for mounting inner panels.
A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
A literature pocket is provided for the inside of the door.

Finish

Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
Removable inner panel is finished in white powder coating.

Accessories

Additional Inner Panels
Air conditioners
Blowers
Breather Kits
Door Clamping Hardware
Door Stop Kits
Enclosure stabilizers
Filter Fans
Floor stand kits
Gland plates
Heaters
Lock kit
Louvered Ventilating Plates
Quick release clamp
Terminal Kit Assemblies
Thermostats
Window kits

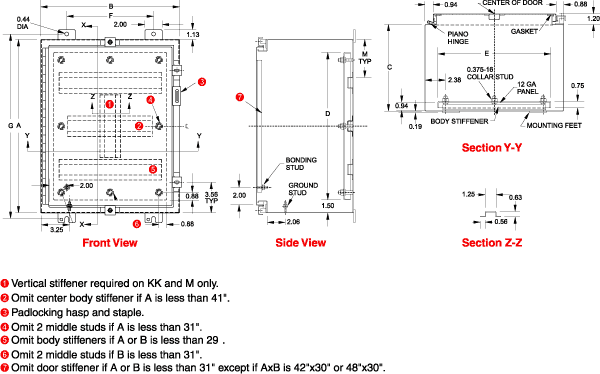

Part No.				Panel Size		Mtg. Centers		Ship Wt.
Part No.	A	B	C	D	E	F	G	lbs.
1418N4B6	16	12	6	13	9	9.5	17.25	27
1418N4G6	16	16	6	13	13	10	17.25	34
1418N4CR6	16	20	6	13	17	14	17.25	41
1418N4C6	20	16	6	17	13	10	21.25	40
1418N4D6	20	20	6	17	17	14	21.25	40
1418N4AR6	24	12	6	21	9	9.5	25.25	41
1418N4H6	24	16	6	21	13	10	25.25	42
1418N4E6	24	20	6	21	17	14	25.25	56
1418N4J6	24	24	6	21	21	18	25.25	65
1418N4F6	30	20	6	27	17	14	31.25	70
1418N4K6	30	24	6	27	21	18	31.25	80
1418N4L6	36	24	6	33	21	18	37.25	91
1418N4B8	16	12	8	13	9	9.5	17.25	29
1418N4C8	20	16	8	17	13	10	21.25	44
1418N4D8	20	20	8	17	17	14	21.25	51
1418N4ER8	20	24	8	17	21	18	21.25	55
1418N4E8	24	20	8	21	17	14	25.25	60
1418N4J8	24	24	8	21	21	18	25.25	70
1418N4KR8	24	30	8	21	27	24	25.25	74
1418N4F8	30	20	8	27	17	14	31.25	79
1418N4K8	30	24	8	27	21	18	31.25	88
1418N4KK8	30	30	8	27	27	24	31.25	106
1418N4L8	36	24	8	33	21	18	37.25	101
1418N4M8	36	30	8	33	27	24	37.25	121
1418N4O8¹	42	30	8	39	27	24	43.25	132
1418N4P8¹	42	36	8	39	33	30	43.25	177
1418N4S8¹	48	36	8	45	33	30	49.25	207
1418N4T8¹	60	36	8	57	33	30	61.25	245
1418N4C10	20	16	10	17	13	10	21.25	47
1418N4E10	24	20	10	21	17	14	25.25	66
1418N4K10	30	24	10	27	21	18	31.25	91
1418N4M10	36	30	10	33	27	24	37.25	125
1418N4R10¹	48	30	10	45	27	24	49.25	175
1418N4S10¹	48	36	10	45	33	30	49.25	183
1418N4T10¹	60	36	10	57	33	30	61.25	252
1418N4E12	24	20	12	21	17	14	25.25	71
1418N4K12	30	24	12	27	21	18	31.25	95
1418N4L12	36	24	12	33	21	18	37.25	106
1418N4M12	36	30	12	33	27	24	37.25	136
1418N4P12¹	42	36	12	39	33	30	43.25	202
1418N4S12¹	48	36	12	45	33	30	49.25	225
1418N4K16	30	24	16	27	21	18	31.25	100
1418N4M16	36	30	16	33	27	24	37.25	149
1418N4S16¹	48	36	16	45	33	30	49.25	290
1418N4T16¹	60	36	16	57	33	30	61.25	232
¹ Does not meet JIC requirements
² Flat Panel
